120mm Knauf FactoryClad Roll 40 (Uncut) - 11.28m2 per roll
9.4m x 1.2m
FREE delivery over £500 excluding VAT
120mm Knauf FactoryClad Roll 40 (Uncut) - 11.28m2 per roll
9.4m x 1.2m
FREE delivery over £500 excluding VAT
Product Description
Product Description

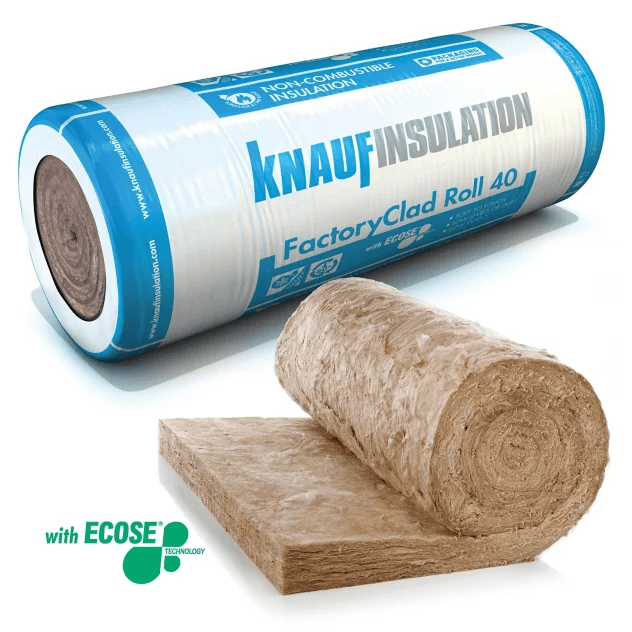

120mm Knauf FactoryClad Roll 40 is a glass mineral wool insulation roll for built-up metal roof and wall systems, and the only 120mm roll in the FactoryClad family. The 32 grade is made in 80mm alone, and the 35 grade steps from 100mm straight to 140mm, so where a specification asks for 120mm of cladding quilt the 40 grade is the one that answers it. The setting is steel-framed industrial, commercial and agricultural buildings, with the roll held in the cavity between the inner liner sheet and the outer profiled weather sheet.
Each roll measures 9.40m by 1200mm and covers 11.28m², with 24 rolls to a pallet for 270.72m². A declared thermal conductivity of 0.040 W/mK produces a thermal resistance of exactly 3.00 m²K/W at this depth, and water vapour resistivity is 5.00 MNs/g.m. Published embodied carbon sits at 1.04 kgCO2e/m² across stages A1 to A3 and 1.38 kgCO2e/m² across A1 to C4.
What a quilt does at its joints decides whether a build-up performs the way it was calculated. Rolls of glass mineral wool knit into one another and take up slight irregularities in the liner sheet instead of bridging them, and they hold that contact as the frame settles and moves. Rigid insulation cannot do this: it either fits or it leaves a void, and voids are where a designed U-value quietly disappears. At 120mm the quilt is also compressed and released as it passes each bracket, and recovering afterwards is part of what keeps the layer continuous.

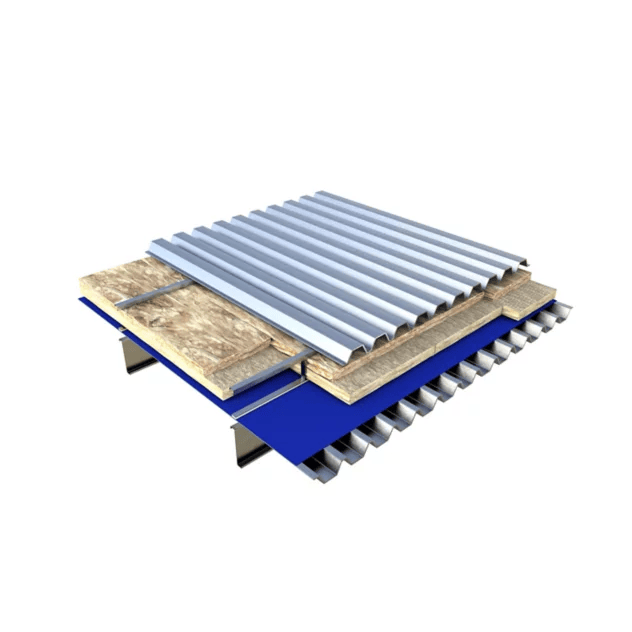

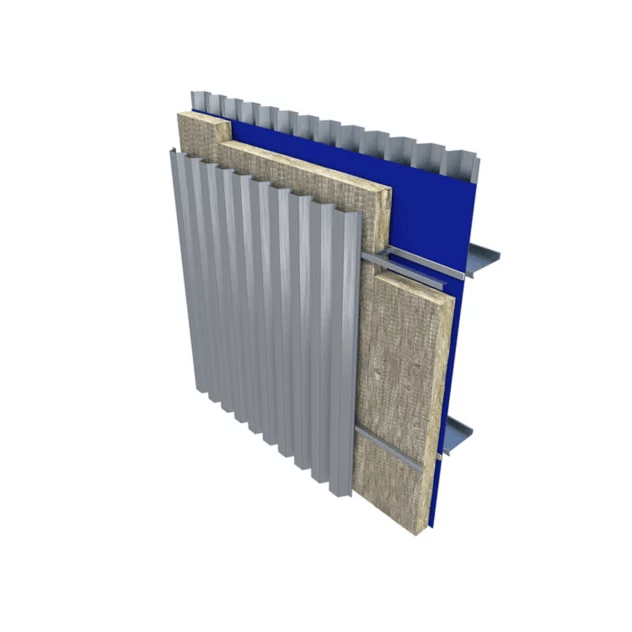

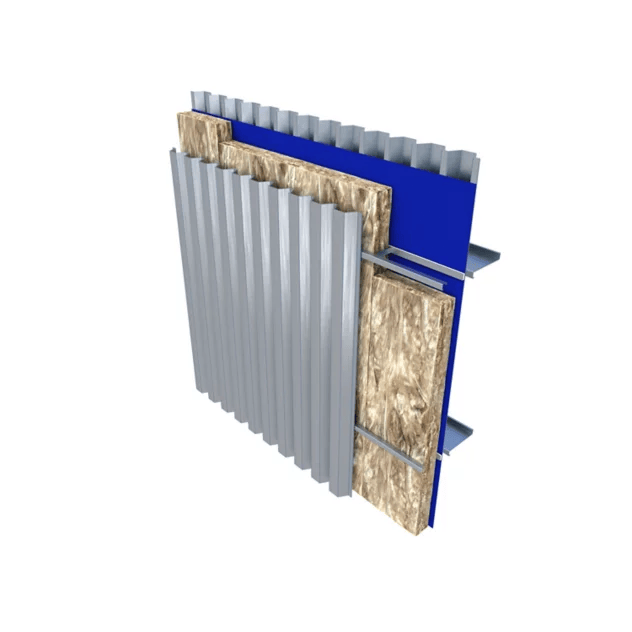

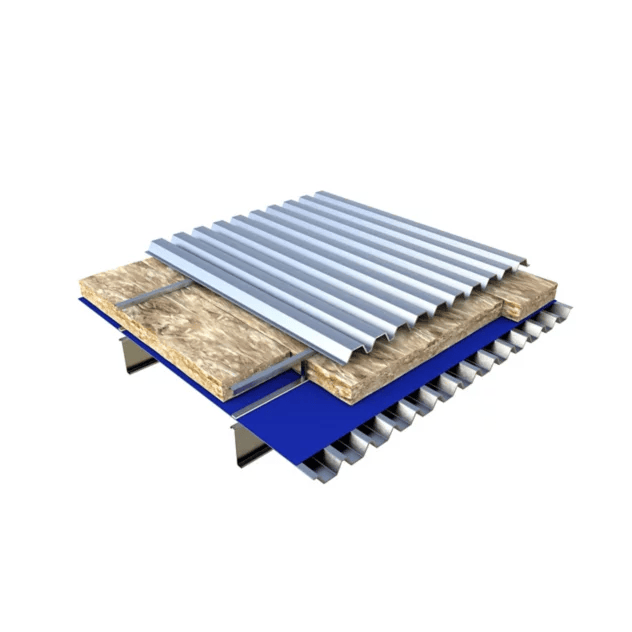

Installation runs in the usual sequence: liner sheet fixed, quilt laid over it, spacer system brought up, outer sheet fixed, all to Knauf Insulation's guidance and the cladding system manufacturer's details. Spacer height and fixing lengths want confirming against 120mm before ordering, since this depth generally needs the bracket schedule looked at rather than assumed. It suits new-build twin-skin roofs and walls, standing seam roofs, and re-cladding work where the target U-value has moved on from whatever the original build-up could reach. Have the U-value calculated for the actual system to BS EN ISO 6946:2017 or BS EN ISO 10211:2017, using BR443:2019, rather than working back from the roll.
Key Benefits of Knauf FactoryClad Roll 40:
- Thermal resistance of exactly 3.00 m²K/W at 120mm.
- The only 120mm option across the FactoryClad Roll 32, 35 and 40 grades.
- Declared thermal conductivity of 0.040 W/mK.
- Non-combustible, Euroclass A1 to BS EN 13501-1.
- 11.28m² per roll, and 270.72m² per pallet across 24 rolls.
- Knits at the joints and takes up substrate irregularities, limiting air gaps through the layer.
- Sound absorbent behind metal liner sheets, reducing internal reverberation.
- 1200mm width matched to commonly used rail and bracket spacer systems.
- Published embodied carbon of 1.04 kgCO2e/m² across stages A1 to A3.
- Bound with ECOSE® Technology, free of added formaldehyde and phenol.
- Rot proof and non-hygroscopic, and will not sustain vermin or support mould growth.
Good to know:
- Only made in the 40 grade: FactoryClad Roll 32 comes in 80mm and Roll 35 runs 60, 100, 140, 180 and 220mm, so 120mm is available from Roll 40 alone.
- Check the spacer system before ordering: bracket height and fixing lengths need to suit 120mm, not the depth the building was originally clad to.
- Built-up metal construction only: this is not a loft, timber frame or masonry cavity product.
- The 40 in the name is a lambda grade referring to 0.040 W/mK, not a thickness.
- Supplied uncut at 9.40m per roll and unfaced on both sides.
- Keep it dry, flat, off the ground and under cover, and re-cover any pack that has been opened.
- Euroclass A1 non-combustibility may bear on the insurance position against foam composite panels. Check with the insurer for the building concerned.
Where the specification asks for 120mm, FactoryClad Roll 40 is the only roll in the family that answers it, and it does so at a clean 3.00 m²K/W with A1 non-combustibility behind it.
Certifications & Standards
Certifications & Standards
Technical Datasheets
Technical Datasheets
Customer Information
Customer Information
Free delivery on orders over £500 ex-VAT. All orders below £500 (ex-VAT) are subject to a £50 delivery charge.
Ordering & Delivery
How do I place an order with Insulation UK?
You can place an order for delivery anytime online. If you want to collect from our distribution centre in South Yorkshire then please email us your requirements at sales@insulationuk.co.uk
and we will send a payment link and collection instructions. If you can’t see what you are looking for or need more information, then call our team on 03003 034 578 and we can sort your order from there.
How do I know what’s happening with my order and when I will receive it?
When you have placed your order, you will then receive an email confirmation, giving you an order reference number and asking you to double check everything is correct on your order such as delivery address, quantities etc. If there are any amendments to be made, then please reply to your confirmation email with any details.
Once the team has processed the order you will receive an email with a BY delivery date, this is the latest date you will receive your delivery.
Your final email will be a 24/48hr notification, on the day of the delivery if you need a more accurate ETA then contact the office on 03003 034 578.
Do you offer next-day delivery?
Yes, we do on certain lines, you will see our next day delivery products marked as NEXT DAY. Order before 12pm for next day delivery (charges will apply)
How much does delivery cost and how long will it take?
Standard delivery is £50 + VAT for all orders below £500 excluding VAT, above £500 excluding VAT delivery is free. Bespoke deliveries can be made but will incur charges. Each product page gives you an estimate delivery by date. For more accurate information call the team on 03003 034 578
Can I choose a specific delivery date or time slot?
We will endeavour to try and accommodate a preferred date, if you need a delivery on a certain day, then please call us on 03003 034 578.
Do you deliver nationwide?
We deliver across most of the UK; however, some postcodes are restricted due to their location. Check out our delivery map for more information. If you find that you are in area we don’t deliver to, we have access to a wide range of haulage options, please call the team on 03003 034 578 to discuss your requirements further.
Will the driver help unload the insulation products?
Most of our deliveries are made with vehicles with mechanical off-load (known as a moffett or fork-lift), the driver will leave them in a safe place of your choice. They will help as much as they are allowed but are not insured to bring anything into a property.
What happens if my order arrives damaged or incomplete?
In the unlikely event your order arrives damaged, then please contact within 48 hours at sales@insulationuk.co.uk with any images of the damage and the team will be in touch. If there is anything missing, then notify the team within 48 hours on 03003 034 578
What if my order doesn’t arrive and I have paid for trades to be on site, can I claim anything towards the costs I have incurred?
We advise not to have trades booked in and around the day of your delivery. Things can happen beyond our control, and your delivery may be delayed or abandoned. We cannot be held liable for any consequential loss such as tradesman wages etc.
Product Advice & Support
How do I know which insulation product is right for my project?
With such a variety of insulation products, we fully understand making sure you have the right one can seem daunting. Our team have over 50 years of experience in the construction industry and there isn’t a question they haven’t been asked! Speak to our technical team on 03003 034 578 and they will be happy to offer some help and guidance.
Do you offer technical advice or support before I buy?
Yes we do! Just call 03003 034 578 and ask for our technical team and we will be happy to support you.
Product Information & Suitability
Product descriptions on this website are provided as general guidance only and are not a substitute for the manufacturer’s Technical Data Sheet (TDS), fire classification information, and the project’s design/specification requirements. Suitability depends on the full build-up and intended use (including any requirement for encapsulation, coverings, and compliance with Building Regulations and the project fire strategy).
It is the customer’s responsibility to confirm, before ordering, that the product specification and performance are suitable for the intended application by reviewing the relevant TDS and taking professional advice where required. If you are unsure, contact us before purchase and provide your intended build-up so we can confirm what information we can support.
Nothing in this notice limits or excludes your statutory rights
Can I speak to someone to confirm product specifications?
Of course you can! There is also a range of data sheets and guides available on the product pages under Technical Information.
Are your products suitable for both DIY and trade customers?
Yes, they are. If you are new to DIY projects involving insulation,
then we advise to always do your research. We have a handy guides section which may help.
Do you offer fire-rated or eco-friendly insulation options?
Yes, we do. Fire ratings are indicated in the specification table on the product page, and our sustainable range is continually growing.
Pricing & Payments
Do you offer trade or bulk-buy discounts?
We always aim to offer the best price online; however we do offer project pricing for larger orders, speak to our sales team with your requirements on 03003 034 578.
What payment methods do you accept?
We accept all major cards including American Express, as well as Apple Pay, Google Pay and PayPal
Can I set up a trade account with credit terms?
We do offer trade accounts, however there are certain criteria we ask for, and any credit account application is subject to credit checks. Call the team on 03003 034 578 to discuss any credit applications.
Do your prices include VAT?
The website has a toggle at the top right of the page so the prices can be displayed including and excluding VAT. VAT, where applicable, is charged at checkout.
Returns & Cancellations
Can I return unwanted insulation products?
Contact the team via email sales@insulationuk.co.uk with the items you wish to return and any other information. Please note if we you need us to collect any unwanted items,
a collection fee will apply.
How do I arrange a return or exchange?
Contact the team via email sales@insulationuk.co.uk or check out our refund policy.
Are there any restocking fees?
Restocking charges will apply in certain instances, please contact the team via email at sales@insulationuk.co.uk check out our refund policy.
What if I’ve ordered incorrectly or need to cancel my order?
Contact the team via email as soon as possible. The best way to get in contact is to reply to any of the emails we have sent you, they will come straight through to the team and will have any relevant order information already on there.
Installation & Compliance
Do you offer installation services or just supply materials?
We do not offer any installation services; we are a supplier of insulation and building materials.
Can I get a datasheet or certificate of performance for your products?
Yes, data sheets can be found in the Technical Information drop down on the product page.
How should I store insulation products before installation?
There are a variety of insulation products each with their own storage instructions. Generally, please keep them off the ground, in a dry area, away from the elements.
Sustainability & Quality
Are your insulation products environmentally friendly?
This depends on the individual products, data sheets are available,
and any environmental benefits are noted on the product pages.
Do your products help reduce energy bills?
The correct insulation properly installed can reduce heat loss from a building and therefore help reduce energy costs.
Are your products made in the UK or imported?
With such a wide variety of products some are made in the UK and some are imported.
Customer Service & Support
How can I contact your support team?
By phone on 03003 034 578, email sales@insulationuk.co.uk or via our
webchat online
What are your opening hours?
Monday to Friday 8am to 5pm for sales and technical support, orders can be placed on line 24/7
How quickly can I expect a reply to my enquiry?
We aim to respond to our customers as quickly as possible.
Technical Details
- Brand:
- Knauf
- Material:
- Mineral wool
- Manufacturers Part Number:
- 002401999
- Length:
- 9.4 m
- Width:
- 1.2 m
- Thickness:
- 120 mm
- Unit Coverage:
- 11.28 m²
- Qty Per Pallet:
- 24 Items
- Sqm Per Pallet:
- 270.72 M²
- Applications:
- Floors, Walls, Ceilings
Thermal performance helps show how effectively the product reduces heat transfer.
Thermal conductivity measures how readily heat passes through the material, so lower figures generally indicate better insulating performance.
R Value shows the material’s thermal resistance at that thickness, so higher figures generally mean stronger insulation performance.
These figures relate to the insulation product itself and should be considered alongside the full wall, roof or floor build-up when checking project requirements.
- Thermal Conductivity:
- 0.40 W/mK
Euroclass reaction to fire is the European EN 13501-1 classification used to show how a construction product behaves when exposed to fire.
The main scale runs from A1 and A2 at the highest end, through B, C, D and E, down to F.
A1 is non-combustible and A2 is limited combustibility, while lower classes indicate a greater contribution to fire.
Euroclass F is the lowest rating on this scale and indicates the weakest reaction-to-fire performance.
This is different from fire resistance, which relates to how long a complete wall, floor or roof build-up can resist fire.
- Reaction to Fire:
- Euroclass A1
