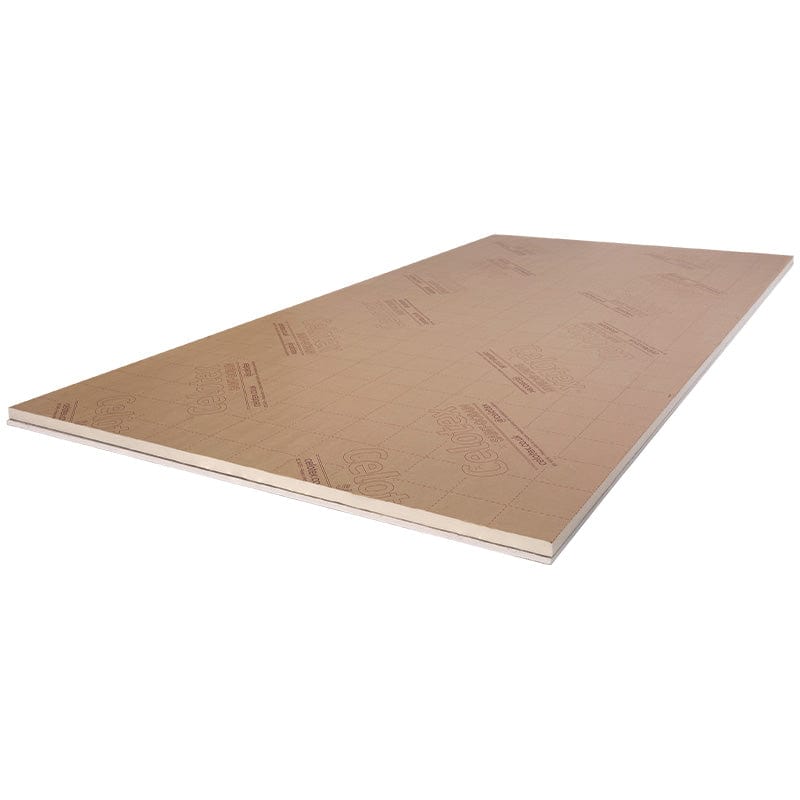

72.5mm Celotex PL4060 PIR Insulated Plasterboard
2.4m x 1.2m | 2.88m² per board
FREE delivery over £500 excluding VAT
72.5mm Celotex PL4060 PIR Insulated Plasterboard
2.4m x 1.2m | 2.88m² per board
FREE delivery over £500 excluding VAT
Couldn't load pickup availability
Product Description
Product Description
72.5mm Celotex PL4060 is a thermal laminate insulated plasterboard that bonds a 60mm rigid polyisocyanurate (PIR) insulation core to a 12.5mm tapered edge plasterboard, giving an overall thickness of 72.5mm. The '60' in the PL4060 code is the 60mm PIR core, one of the deepest in the laminate range, with only the 77.5mm board carrying more. It insulates and dry lines in one board, which makes it a frequent specification for retrofitting older and solid-walled buildings that lose a lot of heat through the wall and need a larger improvement than the mid-range boards can give.
The 60mm core gives a thermal conductivity (lambda) of 0.022 W/mK and an R-value (thermal resistance) of 2.75 m²K/W including the plasterboard, the second-highest single-board figure in the PL4000 range. Each sheet is 2400mm x 1200mm, covers 2.88m² and is sold individually, weighing around 11.31 kg/m². Only the 77.5mm board sits above it, so for most internal upgrades short of the maximum, this is the board that delivers the larger share of the thermal gain in one fix.
Bonding the insulation and the lining into one board lets a single dry-lining operation lift a cold wall's performance and leave a finished surface, instead of fixing insulation and then boarding over it. Because the core is deep, the board does add to the internal face, so it pays to set out reveals, window boards, skirtings and socket positions for the extra thickness before fixing begins.
72.5mm Celotex PL4060 is used to dry line internal solid masonry and timber frame walls, and beneath pitched roof rafters and flat roof joists as the inner lining. On solid walls it is commonly fixed to treated battens or direct-bonded by dot and dab where the background is sound, dry and free of damp. Install it to the latest Celotex technical guidance, the project specification and current Building Regulations, including fire requirements, vapour control and any ventilation the roof build-up needs. Detailed correctly on an older wall, it helps control the risk of surface condensation now that the masonry sits colder behind the insulation, and supports a marked reduction in heat loss. As across the range, it should not be used in the external walls of buildings over 11 metres in height.
Key Benefits of Celotex PL4060:
- Thermal laminate bonding a 60mm rigid polyisocyanurate (PIR) core to 12.5mm tapered edge plasterboard, 72.5mm overall.
- R-value (thermal resistance) of 2.75 m²K/W including the plasterboard, the second-highest in the PL4000 range.
- Thermal conductivity of 0.022 W/mK, giving a large single-board thermal gain for retrofit work.
- Specified for upgrading older and solid-walled properties that lose significant heat through the wall.
- Insulates and dry lines in one operation, avoiding a separate insulation-then-board sequence.
- Fixes to battens or studwork mechanically, or direct-bonds to sound, dry masonry by dot and dab.
- Tapered edge plasterboard ready for taped, filled joints and a skim or paint finish.
- Euroclass B-s1, d0 reaction to fire to BS EN 13501-1.
- BRE Green Guide A+ rating, which can support BREEAM credits.
- Blowing agent with zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP), CFC/HCFC free.
- BBA certified (Certificate 16/5357) for plasterboard thermal laminate applications.
- 2400mm x 1200mm board covering 2.88m², sold individually, at around 11.31 kg/m².
Good to know:
- The 72.5mm overall thickness is a 60mm rigid PIR core plus a 12.5mm tapered edge plasterboard.
- This is one of the thickest laminate boards, so set out reveals, window boards, skirtings and socket and switch positions for the added depth before fixing.
- On solid walls it is usually fixed to treated battens or dot-and-dabbed to a sound, dry background; follow Celotex guidance on the method and any membrane detail.
- Butt the tapered edges together, then scrim-tape and fill the joints before skimming or decorating.
- The bonded plasterboard face is the finished surface and carries the board's Euroclass B-s1, d0 reaction-to-fire performance.
- A full board weighs around 32.6 kg (about 11.31 kg/m²), heavier than the thinner boards, so handle it as a two-person lift.
- On retrofit of older walls, give vapour control proper attention: the masonry sits colder behind the insulation, so follow current Celotex guidance on interstitial condensation.
- Celotex PL4060 should not be used in the external walls of buildings over 11 metres in height; confirm against current Building Regulations.
- Store boards flat, off the ground and under cover, keeping the plasterboard face dry.
With a 60mm core behind a single finished board, 72.5mm Celotex PL4060 is the thickness reached for when a solid or older wall needs a real step change in performance, short only of the range-topping 77.5mm board.
Where build-up depth is not the deciding factor and budget is, you can reach similar R-values for less: we also stock Tekwarm HP+ Insulated Plasterboard, which trades a deeper build-up for a lower price, alongside Tekwarm PIR Insulated Plasterboard as a like-for-like laminate alternative to Celotex PL4000. The full Celotex PL4060 datasheet is available to download for the complete specification and installation detail.
Important Notice: Please be aware that during periods of high demand, we reserve the right to provide alternative brands that meet the same specifications and quality standards as the products you originally ordered.
Certifications & Standards
Certifications & Standards
Customer Information
Customer Information
Free delivery on orders over £500 ex-VAT. All orders below £500 (ex-VAT) are subject to a £50 delivery charge.
Ordering & Delivery
How do I place an order with Insulation UK?
You can place an order for delivery anytime online. If you want to collect from our distribution centre in South Yorkshire then please email us your requirements at sales@insulationuk.co.uk
and we will send a payment link and collection instructions. If you can’t see what you are looking for or need more information, then call our team on 03003 034 578 and we can sort your order from there.
How do I know what’s happening with my order and when I will receive it?
When you have placed your order, you will then receive an email confirmation, giving you an order reference number and asking you to double check everything is correct on your order such as delivery address, quantities etc. If there are any amendments to be made, then please reply to your confirmation email with any details.
Once the team has processed the order you will receive an email with a BY delivery date, this is the latest date you will receive your delivery.
Your final email will be a 24/48hr notification, on the day of the delivery if you need a more accurate ETA then contact the office on 03003 034 578.
Do you offer next-day delivery?
Yes, we do on certain lines, you will see our next day delivery products marked as NEXT DAY. Order before 12pm for next day delivery (charges will apply)
How much does delivery cost and how long will it take?
Standard delivery is £50 + VAT for all orders below £500 excluding VAT, above £500 excluding VAT delivery is free. Bespoke deliveries can be made but will incur charges. Each product page gives you an estimate delivery by date. For more accurate information call the team on 03003 034 578
Can I choose a specific delivery date or time slot?
We will endeavour to try and accommodate a preferred date, if you need a delivery on a certain day, then please call us on 03003 034 578.
Do you deliver nationwide?
We deliver across most of the UK; however, some postcodes are restricted due to their location. Check out our delivery map for more information. If you find that you are in area we don’t deliver to, we have access to a wide range of haulage options, please call the team on 03003 034 578 to discuss your requirements further.
Will the driver help unload the insulation products?
Most of our deliveries are made with vehicles with mechanical off-load (known as a moffett or fork-lift), the driver will leave them in a safe place of your choice. They will help as much as they are allowed but are not insured to bring anything into a property.
What happens if my order arrives damaged or incomplete?
In the unlikely event your order arrives damaged, then please contact within 48 hours at sales@insulationuk.co.uk with any images of the damage and the team will be in touch. If there is anything missing, then notify the team within 48 hours on 03003 034 578
What if my order doesn’t arrive and I have paid for trades to be on site, can I claim anything towards the costs I have incurred?
We advise not to have trades booked in and around the day of your delivery. Things can happen beyond our control, and your delivery may be delayed or abandoned. We cannot be held liable for any consequential loss such as tradesman wages etc.
Product Advice & Support
How do I know which insulation product is right for my project?
With such a variety of insulation products, we fully understand making sure you have the right one can seem daunting. Our team have over 50 years of experience in the construction industry and there isn’t a question they haven’t been asked! Speak to our technical team on 03003 034 578 and they will be happy to offer some help and guidance.
Do you offer technical advice or support before I buy?
Yes we do! Just call 03003 034 578 and ask for our technical team and we will be happy to support you.
Product Information & Suitability
Product descriptions on this website are provided as general guidance only and are not a substitute for the manufacturer’s Technical Data Sheet (TDS), fire classification information, and the project’s design/specification requirements. Suitability depends on the full build-up and intended use (including any requirement for encapsulation, coverings, and compliance with Building Regulations and the project fire strategy).
It is the customer’s responsibility to confirm, before ordering, that the product specification and performance are suitable for the intended application by reviewing the relevant TDS and taking professional advice where required. If you are unsure, contact us before purchase and provide your intended build-up so we can confirm what information we can support.
Nothing in this notice limits or excludes your statutory rights
Can I speak to someone to confirm product specifications?
Of course you can! There is also a range of data sheets and guides available on the product pages under Technical Information.
Are your products suitable for both DIY and trade customers?
Yes, they are. If you are new to DIY projects involving insulation,
then we advise to always do your research. We have a handy guides section which may help.
Do you offer fire-rated or eco-friendly insulation options?
Yes, we do. Fire ratings are indicated in the specification table on the product page, and our sustainable range is continually growing.
Pricing & Payments
Do you offer trade or bulk-buy discounts?
We always aim to offer the best price online; however we do offer project pricing for larger orders, speak to our sales team with your requirements on 03003 034 578.
What payment methods do you accept?
We accept all major cards including American Express, as well as Apple Pay, Google Pay and PayPal
Can I set up a trade account with credit terms?
We do offer trade accounts, however there are certain criteria we ask for, and any credit account application is subject to credit checks. Call the team on 03003 034 578 to discuss any credit applications.
Do your prices include VAT?
The website has a toggle at the top right of the page so the prices can be displayed including and excluding VAT. VAT, where applicable, is charged at checkout.
Returns & Cancellations
Can I return unwanted insulation products?
Contact the team via email sales@insulationuk.co.uk with the items you wish to return and any other information. Please note if we you need us to collect any unwanted items,
a collection fee will apply.
How do I arrange a return or exchange?
Contact the team via email sales@insulationuk.co.uk or check out our refund policy.
Are there any restocking fees?
Restocking charges will apply in certain instances, please contact the team via email at sales@insulationuk.co.uk check out our refund policy.
What if I’ve ordered incorrectly or need to cancel my order?
Contact the team via email as soon as possible. The best way to get in contact is to reply to any of the emails we have sent you, they will come straight through to the team and will have any relevant order information already on there.
Installation & Compliance
Do you offer installation services or just supply materials?
We do not offer any installation services; we are a supplier of insulation and building materials.
Can I get a datasheet or certificate of performance for your products?
Yes, data sheets can be found in the Technical Information drop down on the product page.
How should I store insulation products before installation?
There are a variety of insulation products each with their own storage instructions. Generally, please keep them off the ground, in a dry area, away from the elements.
Sustainability & Quality
Are your insulation products environmentally friendly?
This depends on the individual products, data sheets are available,
and any environmental benefits are noted on the product pages.
Do your products help reduce energy bills?
The correct insulation properly installed can reduce heat loss from a building and therefore help reduce energy costs.
Are your products made in the UK or imported?
With such a wide variety of products some are made in the UK and some are imported.
Customer Service & Support
How can I contact your support team?
By phone on 03003 034 578, email sales@insulationuk.co.uk or via our
webchat online
What are your opening hours?
Monday to Friday 8am to 5pm for sales and technical support, orders can be placed on line 24/7
How quickly can I expect a reply to my enquiry?
We aim to respond to our customers as quickly as possible.
Customer Reviews
Customer Reviews
Technical Details
- Brand:
- Celotex
- Material:
- Polyisocyanurate / Gypsum
- Manufacturers Part Number:
- PL4060
- Length:
- 2400 mm
- Width:
- 1200 mm
- Thickness:
- 72.5 mm
- Unit Coverage:
- 2.88 m²
- Sqm Per Pack:
- 2.88 m²
- Qty Per Pallet:
- 28 Items
- Sqm Per Pallet:
- 20.64 M²
- Weight Per Item:
- 32.58 kg
- Applications:
- Wall, Roof
- Edge Type:
- Tapered Edge
Thermal performance helps show how effectively the product reduces heat transfer.
Thermal conductivity measures how readily heat passes through the material, so lower figures generally indicate better insulating performance.
R Value shows the material’s thermal resistance at that thickness, so higher figures generally mean stronger insulation performance.
These figures relate to the insulation product itself and should be considered alongside the full wall, roof or floor build-up when checking project requirements.
- Thermal Conductivity:
- 0.022 W/mK
- R Value:
- 2.75 M²K/W
Euroclass reaction to fire is the European EN 13501-1 classification used to show how a construction product behaves when exposed to fire.
The main scale runs from A1 and A2 at the highest end, through B, C, D and E, down to F.
A1 is non-combustible and A2 is limited combustibility, while lower classes indicate a greater contribution to fire.
Euroclass F is the lowest rating on this scale and indicates the weakest reaction-to-fire performance.
This is different from fire resistance, which relates to how long a complete wall, floor or roof build-up can resist fire.
- Reaction to Fire:
- Euroclass B-s1
