62.5mm Celotex PL4050 PIR Insulated Plasterboard 2.4m x 1.2m
Free Delivery Over £500 excluding VAT
5% off!
62.5mm Celotex PL4050 PIR Insulated Plasterboard 2.4m x 1.2m
Free Delivery Over £500 excluding VAT
Couldn't load pickup availability
Product Description
Product Description

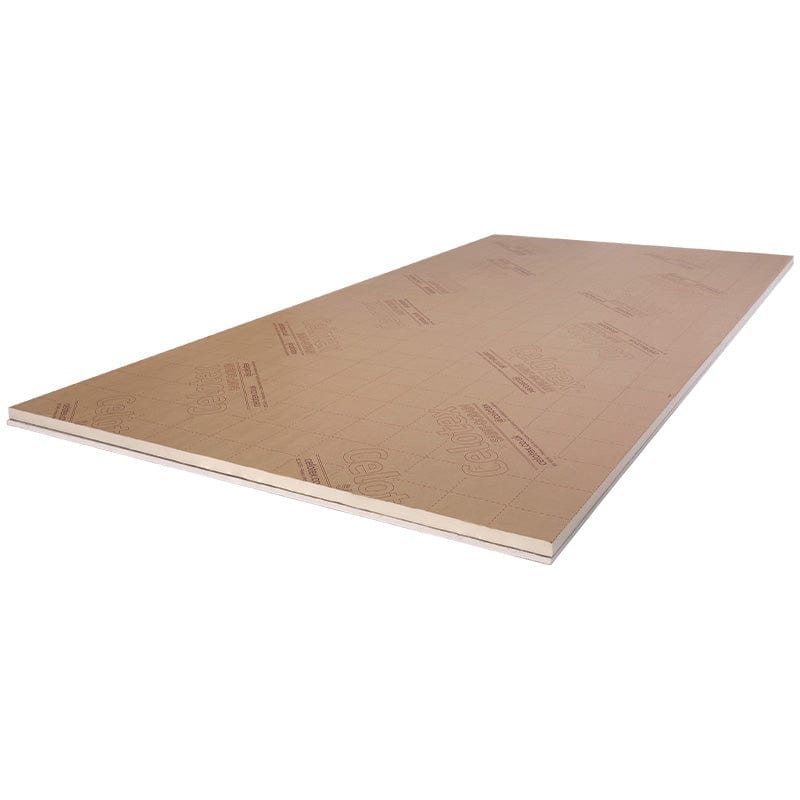

Celotex PL4000: High-Performance PIR Plasterboard Insulation
Celotex PL4000 PIR Insulated Plasterboard is an easy to install polyisocyanurate (PIR) insulation board with a paper facing, laminated to a piece of 12.5mm tapered edge plasterboard.
Available in thicknesses from 25mm to 65mm (insulation only), it can be considered for use in roof and internal wall lining applications.
Product Features and Advantages:
- Superior Thermal Performance: Achieve excellent insulation with a thermal conductivity of 0.022 W/m.K, allowing for thinner applications while meeting your energy targets.
- Quick and Efficient: Combining insulation and plasterboard, the Celotex PL4000 PIR Insulated Plasterboard accelerates project timelines by facilitating quicker dry lining and insulating in one step.
- Sustainability at Core: With a BRE Green Guide Rating of A+, the Celotex PL4000 PIR Insulated Plasterboard supports your environmental goals and aids in obtaining favourable BREEAM assessments.
- Certified Quality: Fully backed by a BBA certification, ensuring that the product is fit for thermal laminate applications when used as specified.
- Installation Ease: Rigid boards that are easy to handle, transport, and install, enhancing your operational efficiency.
Applications
- External walls – Internal lining
- Pitched roofs – Underneath the rafters
- Flat roofs – Underneath the joists
Product Specifications
| Specification | Details |
| Dimensions | 1200 x 2400 mm |
| Area Per Board | 2.88 m² |
| Thermal Conductivity | 0.022 W/mK |
| Certification | BBA certified |
| Plasterboard | 12.5mm tapered edge |
| Insulation | Fibre-free rigid polyisocyanurate (PIR) with a paper facing |
| Fire Classification | Euroclass B-s1, d0 Reaction to Fire classification, according to BS EN 13501-1. |
Available Sizes
Celotex PL4000 PIR Insulated Plasterboard is available in a variety of sizes, tailored to meet the specific requirements of your projects. From standard residential fittings to large commercial applications, this insulation adapts to your unique needs.
| Insulation Thickness (mm) | Plasterboard Thickness (mm) | Overall Thickness (mm) | R-Value (m².K/W) | Weight (kg/m²) |
| 25 | 12.5 | 37.5 | 1.2 | 9.99 |
| 40 | 12.5 | 52.5 | 1.85 | 10.46 |
| 50 | 12.5 | 62.5 | 2.3 | 10.96 |
| 60 | 12.5 | 72.5 | 2.75 | 11.31 |
| 65 | 12.5 | 77.5 | 3 | 11.48 |
Cost effective solutions from InsulationUK
Did you know you can achieve the same R Values for a much lower cost if space constraints aren't an issue by using Tekwarm HP+ Insulated Plasterboard?
Tekwarm HP+ Insulated Plasterboard offers a balanced solution, delivering high energy efficiency at a fraction of the cost, making it perfect for projects where the balance between performance and budget is key.
We also offer Tekwarm PIR Insulated Plasterboard, a like for like laminate board alternative to Celotex PL4000 PIR Insulated Plasterboard.
Downloads
Celotex PL4000 PIR Insulated Plasterboard Datasheet
Frequently Asked Questions (FAQ's)
What makes PIR insulated plasterboard different? PIR insulated plasterboard combines the thermal insulation benefits of PIR foam with the practical surface of plasterboard. This combination provides superior insulation properties compared to other materials, making it highly efficient for thermal management in buildings.
Why choose PIR insulated plasterboard for your project? PIR insulated plasterboard is particularly valued for its high insulation efficiency, which can significantly reduce heating and cooling costs. It's also lightweight and easy to install, offering a two-in-one solution that speeds up construction projects and reduces overall labour costs.
Can PIR insulated plasterboard be used in all areas of a building? Yes, PIR insulated plasterboard is versatile enough to be used in various parts of a building, including walls, ceilings, and roof linings. Its robust thermal properties make it an excellent choice for both new builds and renovations where improved energy efficiency is desired.
How does PIR insulated plasterboard contribute to building sustainability? By enhancing the thermal envelope of a building, PIR insulated plasterboard helps to lower energy consumption for heating and cooling, which in turn reduces the building's carbon footprint. Additionally, some PIR boards are manufactured with eco-friendly processes and materials, further supporting sustainable construction practices.
What should be considered when installing PIR insulated plasterboard? When installing PIR insulated plasterboard, it is crucial to ensure that the boards are correctly aligned and tightly fitted to avoid thermal bridging and gaps that could compromise insulation effectiveness. Proper handling and installation are essential to maximize the benefits of the PIR insulation.
