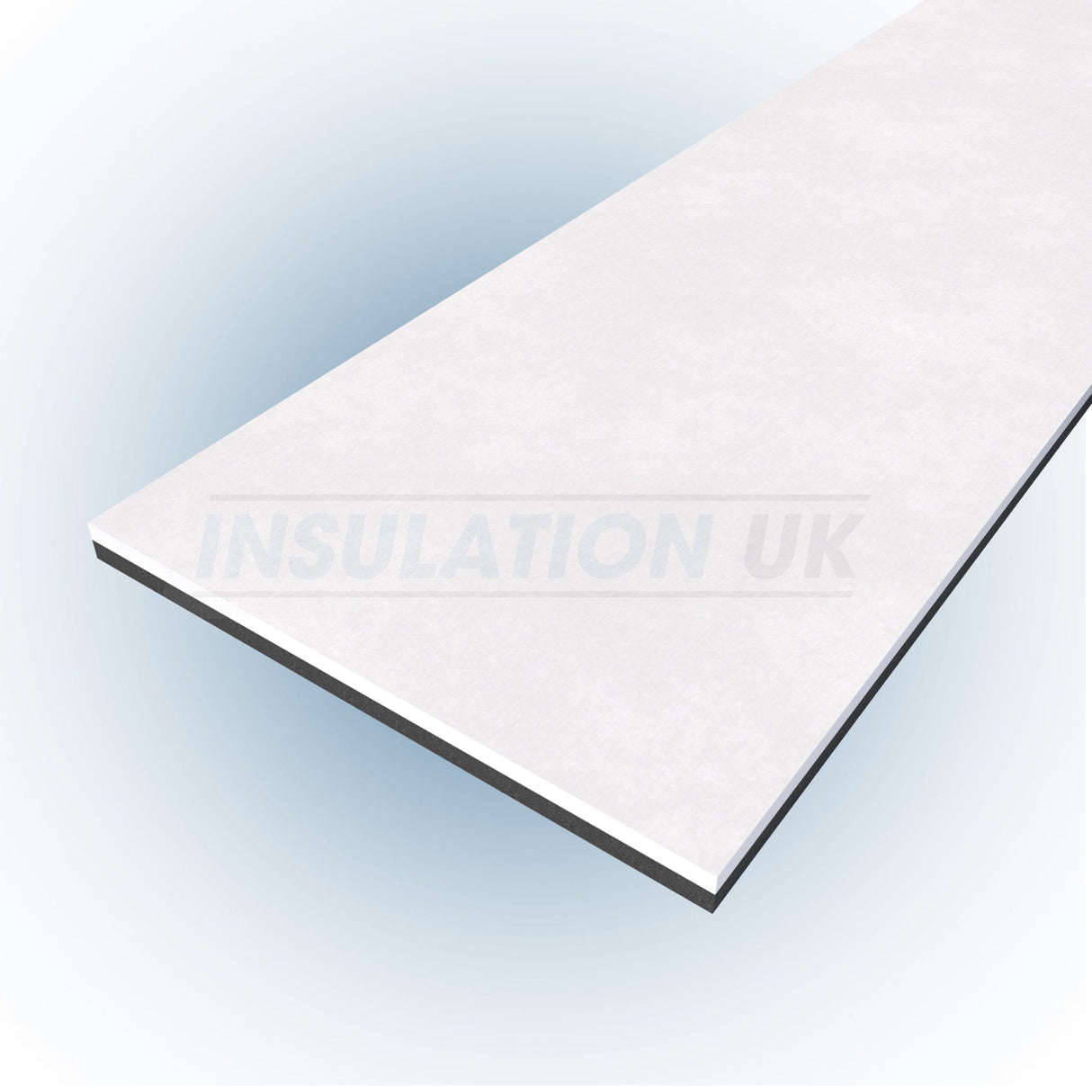

Tekwarm Reveal Board
Maximise Insulation Efficiency with Tekwarm Reveal Board
Tekwarm Reveal Board introduces a solution to insulating window and door reveals, offering a high-performance solution that combines sleek design with superior thermal efficiency. Its unique construction, featuring a 6mm Plasterboard bonded to 14mm EPS HP+ Insulation, ensures a thinner profile that enhances insulation without encroaching on the window or door frame aesthetics. Infused with a carbon additive, the grey HP+ Insulation disperses and reflects heat, significantly boosting the board's thermal performance and enabling lower U-values with a thinner board.
Why Choose Tekwarm Reveal Board?
- Superior Thermal Efficiency: Boasts a thermal conductivity of 0.030 W/mK, offering exceptional insulation with a thinner profile.
- Aesthetic Compatibility: Designed to complement window and door reveals without obscuring the frame, maintaining the integrity of your space's design.
- Versatile Sizing: Available in two sizes for versatility in application, ensuring a perfect fit for both windows and doors.
- Ease of Installation: The board can easily be trimmed on-site, facilitating a swift and efficient installation process.

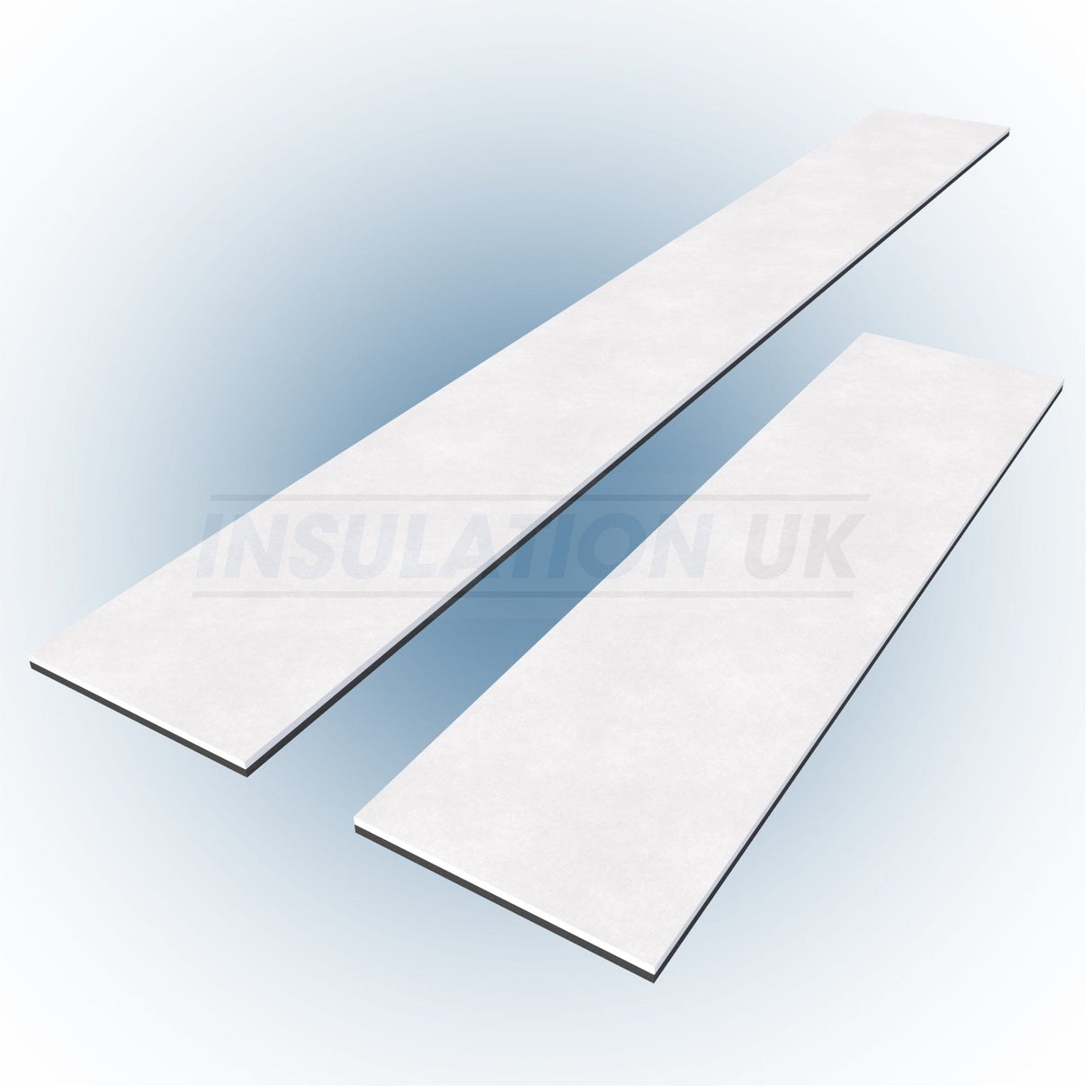

Size Variants:
| Board Size (mm) | Insulation Thickness (mm) | Thermal Conductivity (W/mK) |
|---|---|---|
| 1200 x 298 (nominal) | 14 | 0.030 |
| 2400 x 298 (nominal) | 14 | 0.030 |
General Specifications:
| Specification | Details |
|---|---|
| Plasterboard Thickness | 6mm Plasterboard |
| Insulation Type | High Performance Plus Polystyrene Insulation |
| Thermal Conductivity | 0.030 W/mK |

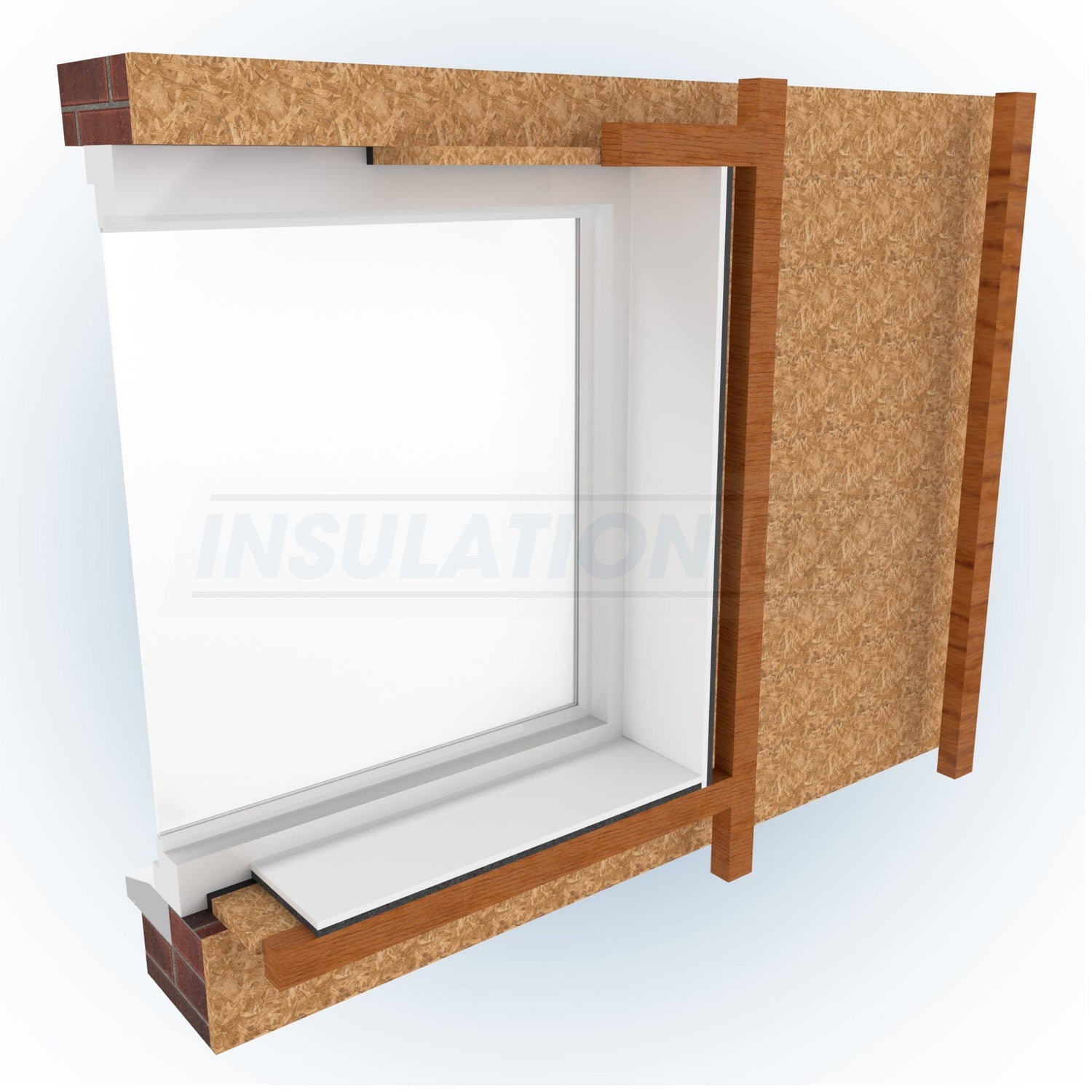

| Suitable Applications | Window & Door Reveals |
| Installation | Can be trimmed to size with a Plasterboard Saw or sharp knife |
Installation & Handling:
The Tekwarm Reveal Board is engineered for easy handling and installation, making it an ideal choice for enhancing the thermal efficiency of window and door reveals. The board's flexibility allows for on-site adjustments, ensuring a precise fit and seamless integration into the existing architecture.
Downloads
Delivery Information
Delivery Information
Delivery Charges and Information
At Insulation UK, we strive to provide clear and transparent
information regarding delivery charges and order processing. Below are the
details of our delivery charges, minimum order requirements, and additional
delivery options.
Delivery Charges
We have structured our delivery charges based on the total value of your order.
For orders up to £500 ex- VAT the delivery charge is £50 ex-VAT
Orders above £500 ex VAT will qualify for free delivery.
Local Delivery Charge
For deliveries within 35 miles of Postcode S63 9BL,
we offer a local delivery service.
For orders up to £500 ex-VAT, the delivery charge is
£35 ex-VAT.
Orders above £500 ex-VAT will qualify for free delivery.
Order Processing Information
Orders are processed Monday to Friday from 8 AM to 5 PM.
Orders placed over the weekend or on bank holidays will be processed on the
next working day. Delivery time frames are calculated starting the day after
your order has been processed, and you will receive tracking information once
your order is dispatched.
Weekend Deliveries
Weekend deliveries are available upon request and are
subject to the availability of existing delivery routes. Please contact us to
confirm if a weekend delivery can be arranged for your order.
Orders Placed on Weekends and Holidays
Please note that any orders placed on weekends or bank
holidays will be processed on the next working day. This may affect your
expected delivery time, so we advise placing your order accordingly. For more
information on delivery times during weekends and holidays, please contact our
customer support team.
Collections
To collect your order, please email us at sales@insulationuk.co.uk with
your contact details, along with the products and quantities you require. Our
team will review your email and respond with a secure payment link. For your
security, we do not process payments over the phone. Once payment is received,
your order will be processed, and our team will notify you when it’s ready for
collection.
Product Delivery Times
Most of our orders are dispatched within 3 working days.
However, this time frame may extend to 5 working days for larger orders.
Specialty items may take between 5 to 7 working days. Please note that delivery
time frames can change depending on the product. For the most up-to-date
delivery times, please check the product page or contact us directly.
We will contact you within 24 to 48 hours after your order
is placed to confirm delivery times and dates. If you have urgent delivery
needs, please reach out to us for further assistance.
Specifications
- Brand:
- Tekwarm
- Length:
- 2400 mm
- Width:
- 298.0 mm
- Material:
- Polystyrene / Gypsum
- Manufacturers Part Number:
- PR007317
- Edge Type:
- Square
