Tekwarm

Tekwarm HP+ Insulated Plasterboard | 2400mm x 1200mm x 37.5mm

SKU: BM02012
£24.73 Ex VAT

Free Delivery Over £500.00 Ex-Vat

Tekwarm Thermal Laminate HP+ . Tekwarm Plasterboard laminate. Cellotext PL board. 2400mm x 1200mm Tekwarm EPS HP Plus is the Highest Performing Polystyrene Plasterboard on The Market Tekwarm EPS HP Plus insulated plasterboard is an expanded high performance plus grey polystyrene foam insulation board which is bonded to a high quality 12.5mm thick tapered edge plasterboard. Tekwarm insulating laminates are designed to act as an optimum level thermal insulation in both wall and roof applications..

Tekwarm

Tekwarm HP+ Insulated Plasterboard | 2400mm x 1200mm x 37.5mm

SKU: BM02012
£24.73 Ex VAT

Free Delivery Over £500.00 Ex-Vat

Tekwarm Thermal Laminate HP+ . Tekwarm Plasterboard laminate. Cellotext PL board. 2400mm x 1200mm Tekwarm EPS HP Plus is the Highest Performing Polystyrene Plasterboard on The Market Tekwarm EPS HP Plus insulated plasterboard is an expanded high performance plus grey polystyrene foam insulation board which is bonded to a high quality 12.5mm thick tapered edge plasterboard. Tekwarm insulating laminates are designed to act as an optimum level thermal insulation in both wall and roof applications..

Product Description

Tekwarm HP+ Insulated Plasterboard

Elevate Your Insulation Standards with Tekwarm HP+

Tekwarm HP+ Insulated Plasterboard blends High Performance Plus (HP+) EPS E grade grey polystyrene with premium 12.5mm thick tapered edge plasterboard.

The High Performance Plus insulation is an excellent insulating medium which exhibits consistent thermal performance over the range of temperatures normally encountered in buildings. The grey colour is due to the carbon additive which acts within the boards to disperse and reflect heat radiation. This creates a more thermally efficient insulant to achieve lower U-values with a thinner board, giving the boards an improvement in thermal performance compared to white EPS.

Why Tekwarm HP+?

  • Superior Thermal Efficiency: Offering a thermal conductivity of 0.030 W/mK, Tekwarm HP+ ensures your spaces are insulated to the highest standards.
  • Versatile Application: Ideal for a wide array of construction projects, thanks to its compatibility with both adhesive and mechanical fixing methods.
  • Eco-Friendly Choice: With zero ODP and a GWP of less than 5, Tekwarm HP+ is designed with the planet in mind.
  • Streamlined Construction: The dual-purpose nature of this product allows for significant time savings during the insulation and dry lining processes.

General Specifications:

Specification Details
Width 1200mm
Length 2400mm
Insulation Thickness 25mm
Plasterboard Thickness 12.5mm
Overall Nominal Thickness 37.5mm
Approx Weight (per board) 24.48kg
R Value 0.83 M²K/W
Coverage 2.88m² per board
Lambda (Thermal Conductivity) 0.030 W/mK

Installation & Handling

Tekwarm HP+ is designed for straightforward installation, adhering to rigorous performance and safety standards. For optimal results, follow the detailed installation guide, ensuring compliance with all relevant building regulations.

Limitations & Safety

This product is not intended for use in damp or continuously humid conditions and includes a flame retardant additive for safety. Consult the data sheet for comprehensive handling instructions.

The Benefits of Using Insulated Plasterboard

Insulated plasterboard combines insulation and plasterboard into one efficient product, offering distinct advantages over separate installation:

  1. Superior Energy Efficiency: The integrated insulation in insulated plasterboard minimizes thermal bridges, significantly improving a building's heat retention. This enhanced thermal efficiency is crucial for reducing energy consumption and heating costs, leading to a more sustainable and cost-effective living environment.

  2. Space-Saving Design: Its composite structure saves valuable space, enabling thinner wall constructions without sacrificing insulation performance, which is particularly beneficial in renovations and small spaces.

  3. Installation Efficiency: The all-in-one product streamlines the installation process, saving time and labor costs compared to fitting insulation and plasterboard separately.

  4. Cost-Effectiveness: Initial costs are often offset by lower installation expenses and substantial long-term savings in energy bills due to the product's superior thermal efficiency.

  5. Enhanced Building Performance: In addition to energy savings, insulated plasterboard can improve moisture management and sound insulation, enhancing indoor comfort.

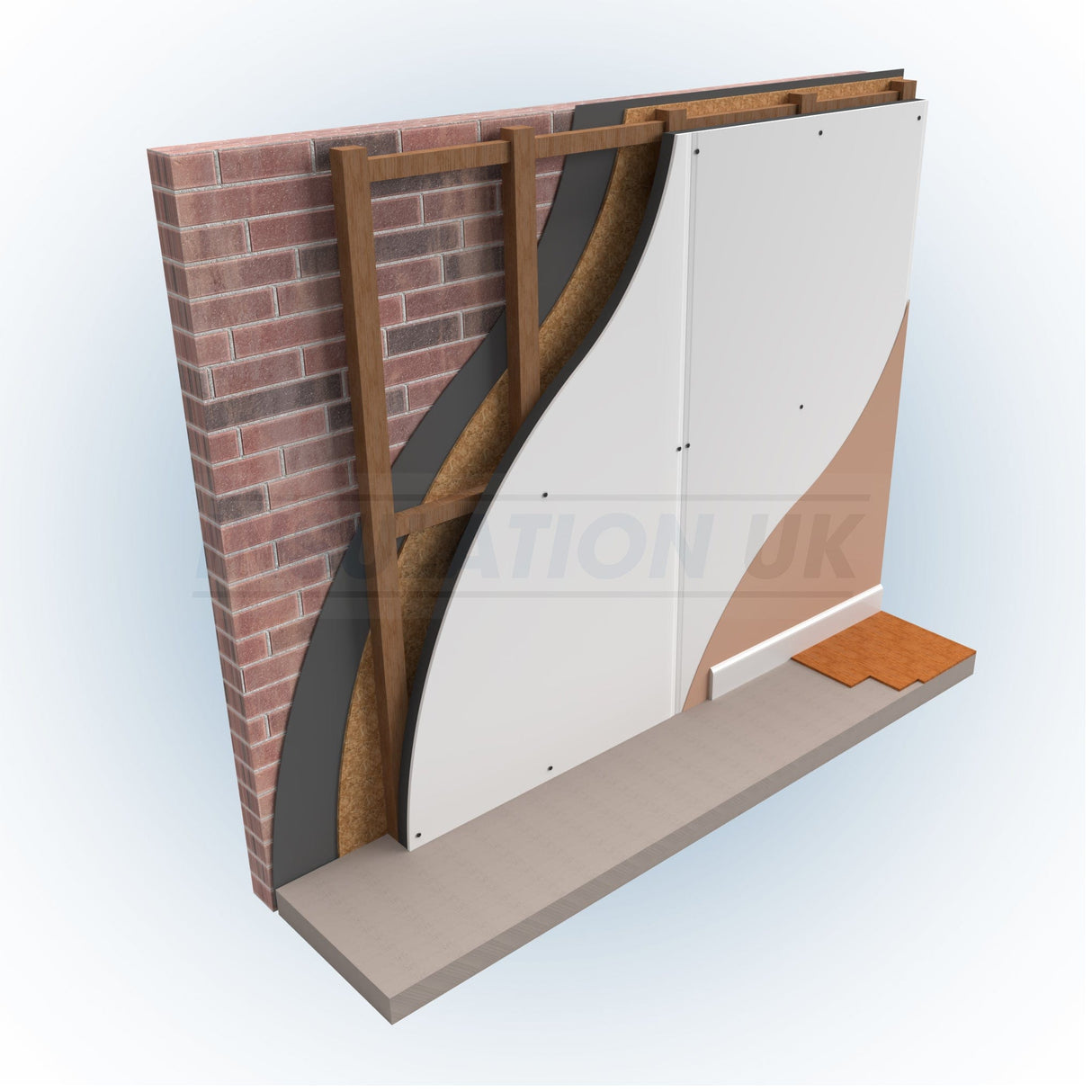

  6. Flexibility in Thermal and Acoustic Comfort: When installing onto a stud wall, there's an opportunity to add extra insulation between the studs, boosting both thermal and acoustic performance. This additional layer can significantly enhance a building's energy efficiency and provide a quieter, more comfortable indoor environment. Whether aiming for higher thermal resistance (R-value) to keep heat in during winter and out during summer or seeking to minimise noise transmission between rooms, this added insulation maximises the wall’s performance.

In essence, insulated plasterboard not only simplifies the construction process but also provides a versatile and effective way to enhance a building's thermal and acoustic comfort. This makes it an ideal choice for those looking to improve energy efficiency and indoor living conditions.

Downloads

Tekwarm HP+ Insulated Plasterboard Data Sheet

Downloads

Delivery Information

Delivery Charges and Information

At Insulation UK, we strive to provide clear and transparent
information regarding delivery charges and order processing. Below are the
details of our delivery charges, minimum order requirements, and additional
delivery options.

Delivery Charges

We have structured our delivery charges based on the total value of your order.

For orders up to £500 ex- VAT the delivery charge is £50 ex-VAT

Orders above £500 ex VAT will qualify for free delivery.

Local Delivery Charge

For deliveries within 35 miles of Postcode S63 9BL,
we offer a local delivery service.

For orders up to £500 ex-VAT, the delivery charge is
£35 ex-VAT.

Orders above £500 ex-VAT will qualify for free delivery.

Order Processing Information

Orders are processed Monday to Friday from 8 AM to 5 PM.
Orders placed over the weekend or on bank holidays will be processed on the
next working day. Delivery time frames are calculated starting the day after
your order has been processed, and you will receive tracking information once
your order is dispatched.

Weekend Deliveries

Weekend deliveries are available upon request and are
subject to the availability of existing delivery routes. Please contact us to
confirm if a weekend delivery can be arranged for your order.

Orders Placed on Weekends and Holidays

Please note that any orders placed on weekends or bank
holidays will be processed on the next working day. This may affect your
expected delivery time, so we advise placing your order accordingly. For more
information on delivery times during weekends and holidays, please contact our
customer support team.

Collections

To collect your order, please email us at sales@insulationuk.co.uk with
your contact details, along with the products and quantities you require. Our
team will review your email and respond with a secure payment link. For your
security, we do not process payments over the phone. Once payment is received,
your order will be processed, and our team will notify you when it’s ready for
collection.

Product Delivery Times

Most of our orders are dispatched within 3 working days.
However, this time frame may extend to 5 working days for larger orders.
Specialty items may take between 5 to 7 working days. Please note that delivery
time frames can change depending on the product. For the most up-to-date
delivery times, please check the product page or contact us directly.

We will contact you within 24 to 48 hours after your order
is placed to confirm delivery times and dates. If you have urgent delivery
needs, please reach out to us for further assistance.

Specifications

Brand:
Tekwarm
Length:
2400 mm
Width:
1200.0 mm
Thickness:
37.5 mm
Material:
Polystyrene / Gypsum
Unit Coverage:
2.88 M²
Manufacturers Part Number:
PR005919
Thermal Conductivity:
0.030 W/mK
R Value:
0.83 M²K/W
Edge Type:
Tapered Edge
Weight Per Item:
24.48 kg
