Jablite

150mm Jablite Jabfloor 250 Expanded Polystyrene Insulation (EPS250) 2.4m x 1.2m 4 per pack

SKU: IUK00353
£371.54 Ex VAT

Free Delivery Over £500 excluding VAT

Jablite

150mm Jablite Jabfloor 250 Expanded Polystyrene Insulation (EPS250) 2.4m x 1.2m 4 per pack

SKU: IUK00353
£371.54 Ex VAT

Free Delivery Over £500 excluding VAT

Product Description

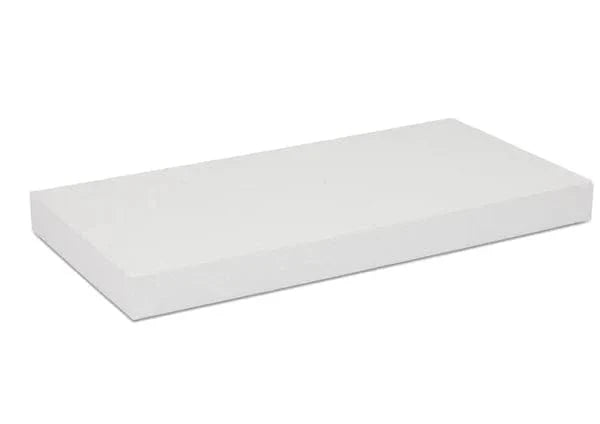

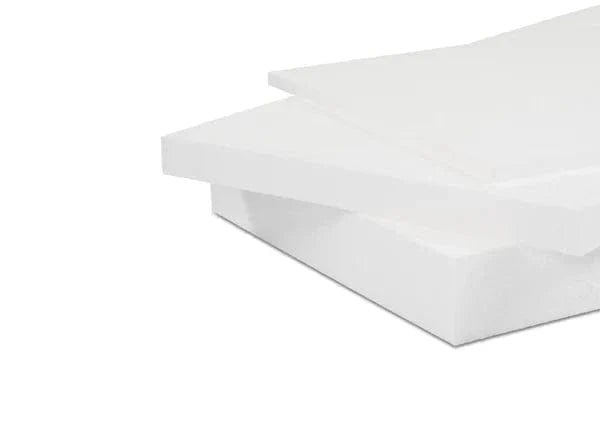

Jablite Jabfloor (EPS250) Polystyrene Floor Insulation 2400 x 1200mm

Jabfloor is a closed cell expanded polystyrene (EPS) insulation board suitable for use in all floor constructions. It is an excellent insulating medium which exhibits consistent thermal performance over the range of temperatures normally encountered in buildings.

The material is versatile, light in weight, clean and easy to handle, and provides a cost-effective means of including permanent insulation in floors, walls and roofs to meet, and exceed, the standards laid down in the Building Regulations.

Thermal conductivity: 0.038 W/mK.

Certification: BBA certified.

Jabfloor is a BBA-certified floor insulation that achieves the required U-value and compressive performance on a range of different floor applications:

  • Below ground supported slab

  • Above slab below chipboard

  • Above slab below screed

  • Precast suspended concrete

  • Cold Store

  • BBA accredited, certificate 87/1796.

  • Provides cost effective insulation for the lifetime of the building

  • Excellent compression properties

  • 100% recyclable

  • Achieves an A+ rating in the BRE Green Guide to Specification

  • Available with Class E fire retardant additive

  • Flood proof

  • Lightweight and easy to handle

  • Is non-toxic and biologically inert

A range of compressive strengths are available to suit all building types from domestic to industrial.

Jabfloor should be tightly butted against the perimeter walls and insulation strip should be used on all exposed edges. An expansion gap may be necessary around the edge of the floor finish in screed or particleboard overlay.

Jabfloor is manufactured from expanded polystyrene (EPS) which is lightweight and easy to handle on site.

Jabfloor can be used in temperatures up to 80°C. It is therefore suitable for use with underfloor heating systems

Approved by BBA as Jablite Floor Insulation - Certificate number 87/1796

The Jablite Jabfloor insulation range is available in Grade EPS70, EPS100, EPS150, EPS200 and EPS250 grades as defined by BS EN13163.

As a quick reference, the following guidance about use and design loads applies:

Jablite Jabfloor EPS70 is used for standard domestic loads

Jablite Jabfloor EPS100 is used in offices and schools.

Jablite Jabfloor EPS150 – 250 is used in heavy commercial, industrial settings

COMPRESSION PERFORMANCE

Grade (EPS)

70

100

150

200

250

Nominal Density (Kg/m3)

15

20

25

31

34

Compressive Strength 1% (kN/m2)

20

45

70

90

100

Compressive Strength 10% (kN/m2)

70

100

150

200

250

Shear Strength (kN/m2)

55

75

100

200

250

Shear Modulus (kN/m2)

2100

2800

3400

4100

4800

Accreditation Certificates - Click Here

Product Technical Data PDF - Click Here

Good To Know (The FAQ's)

Ordering & Delivery

How do I place an order with Insulation UK?

You can place an order for delivery anytime online. If you want to collect from our distribution centre in South Yorkshire then please email us your requirements at sales@insulationuk.co.uk
and we will send a payment link and collection instructions. If you can’t see what you are looking for or need more information, then call our team on 03003 034 578 and we can sort your order from there.

How do I know what’s happening with my order and when I will receive it?

When you have placed your order, you will then receive an email confirmation, giving you an order reference number and asking you to double check everything is correct on your order such as delivery address, quantities etc. If there are any amendments to be made, then please reply to your confirmation email with any details.

Once the team has processed the order you will receive an email with a BY delivery date, this is the latest date you will receive your delivery.

Your final email will be a 24/48hr notification, on the day of the delivery if you need a more accurate ETA then contact the office on 03003 034 578.

Do you offer next-day delivery?

Yes, we do on certain lines, you will see our next day delivery products marked as NEXT DAY. Order before 12pm for next day delivery (charges will apply)

How much does delivery cost and how long will it take?

Standard delivery is £50 + VAT for all orders below £500 excluding VAT, above £500 excluding VAT delivery is free. Bespoke deliveries can be made but will incur charges. Each product page gives you an estimate delivery by date. For more accurate information call the team on 03003 034 578

Can I choose a specific delivery date or time slot?

We will endeavour to try and accommodate a preferred date, if you need a delivery on a certain day, then please call our team on 03003 034
578.

Do you deliver nationwide?

We deliver across most of the UK; however, some postcodes are restricted due to their location. Check out our delivery map for more information. If you find that you are in area we don’t deliver to, we have access to a wide range of haulage options, please call the team on 03003 034 578 to discuss your requirements further.

Will the driver help unload the insulation products?

Most of our deliveries are made with vehicles with mechanical off-load (known as a moffett or fork-lift), the driver will leave them in a safe place of your choice. They will help as much as they are allowed but are not insured to bring anything into a property.

What happens if my order arrives damaged or incomplete?

In the unlikely event your order arrives damaged, then please contact within 48 hours at sales@insulationuk.co.uk with any images of the damage and the team will be in touch. If there is anything missing, then notify the team within 48 hours on 03003 034 578

What if my order doesn’t arrive and I have paid for trades to be on site, can I claim anything towards the costs I have incurred?

We advise not to have trades booked in and around the day of your delivery. Things can happen beyond our control, and your delivery may be delayed or abandoned. We cannot be held liable for any consequential loss such as tradesman wages etc.



Product Advice & Support

How do I know which insulation product is right for my project?

With such a variety of insulation products, we fully understand making sure you have the right one can seem daunting. Our team have over 50 years of experience in the construction industry and there isn’t a question they haven’t been asked! Speak to our technical team on 03003 034 578 and they will be happy to offer some help and guidance.

Do you offer technical advice or support before I buy?

Yes we do! Just call 03003 034 578 and ask for our technical team and we will be happy to support you.

Can I speak to someone to confirm product specifications?

Of course you can! There is also a range of data sheets and guides available on the product pages under Technical Information.

Are your products suitable for both DIY and trade customers?

Yes, they are. If you are new to DIY projects involving insulation,
then we advise to always do your research. We have a handy guides section which may help.

Do you offer fire-rated or eco-friendly insulation options?

Yes, we do. Fire ratings are indicated in the specification table on the product page, and our sustainable range is continually growing.

Pricing & Payments

Do you offer trade or bulk-buy discounts?

We always aim to offer the best price online; however we do offer project pricing for larger orders, speak to our sales team with your requirements on 03003 034 578.

What payment methods do you accept?

We accept all major cards including American Express, as well as Apple Pay, Google Pay and PayPal

Can I set up a trade account with credit terms?

We do offer trade accounts, however there are certain criteria we ask for, and any credit account application is subject to credit checks. Call the team on 03003 034 578 to discuss any credit applications.

Do your prices include VAT?

The website has a toggle at the top right of the page so the prices can be displayed including and excluding VAT. VAT, where applicable, is charged at checkout.

Returns & Cancellations

Can I return unwanted insulation products?

Contact the team via email sales@insulationuk.co.uk  with the items you wish to return and any other information. Please note if we you need us to collect any unwanted items,
a collection fee will apply.

How do I arrange a return or exchange?

Contact the team via email sales@insulationuk.co.uk or check out our refund policy.

Are there any restocking fees?

Restocking charges will apply in certain instances, please contact the team via email at sales@insulationuk.co.uk check out our refund policy.

What if I’ve ordered the wrong product or size?

Contact the team via phone or email as soon as possible.



Installation & Compliance

Do you offer installation services or just supply materials?

We do not offer any installation services; we are a supplier of insulation and building materials.

Can I get a datasheet or certificate of performance for your products?

Yes, data sheets can be found in the Technical Information drop down on the product page.

How should I store insulation products before installation?

There are a variety of insulation products each with their own storage instructions. Generally, please keep them off the ground, in a dry area, away from the elements.



Sustainability & Quality

Are your insulation products environmentally friendly?

This depends on the individual products, data sheets are available,
and any environmental benefits are noted on the product pages.

Do your products help reduce energy bills?

The correct insulation properly installed can reduce heat loss from a building and therefore help reduce energy costs.

Are your products made in the UK or imported?

With such a wide variety of products some are made in the UK and some are imported.



Customer Service & Support

How can I contact your support team?

By phone on 03003 034 578, email sales@insulationuk.co.uk or via our
webchat online

What are your opening hours?

Monday to Friday 8am to 5pm for sales and technical support, orders can be placed on line 24/7

How quickly can I expect a reply to my enquiry?

We aim to respond to our customers as quickly as possible.

Technical Information

Specifications

Brand:
Jablite
Length:
2400 mm
Width:
1200.0 mm
Thickness:
150.0 mm
Material:
Polystyrene
Thermal Conductivity:
0.034 W/mK
Compressive strength:
250 kPa
Qty Per Pack:
4 Items
