TekHVAC Acoustic Lagging Polymeric Barrier | 2m x 1.2.m x 53mm

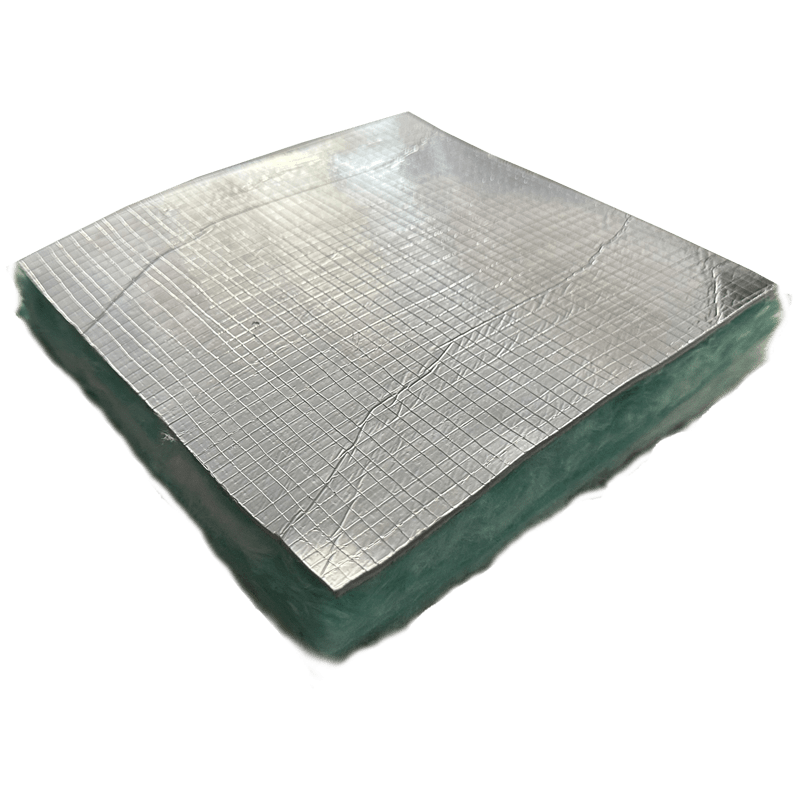

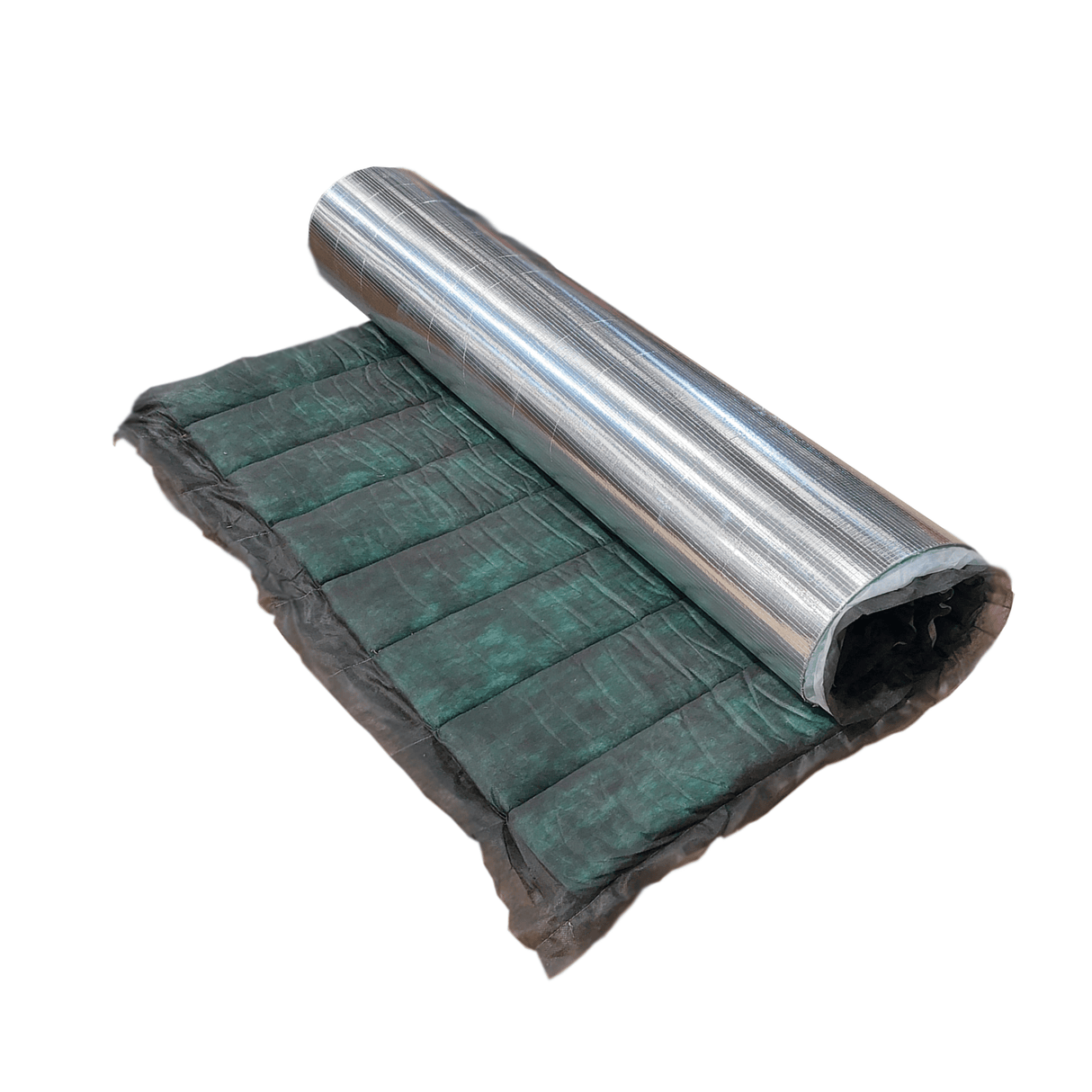

The product is made up from 10kg/m2 BCO silver class O reinforced foil faced polymeric backed with a stitched non woven quilted back and glass acoustic core of 24/25kgm3 density in 50mm.
TekHVAC polymeric acoustic lagging quilt examples below are as a guide only on showing performance based on a quilt with a 0.75mm galvanized steel only as a flat sheet as a guide dB.
FREQUENCY f Hz (results are sound reduction index shown as dB)
|
Material |
125 |
250 |
500 |
1000 |
2000 |
4000 |
|
5kgm2 + 25mm glass |
14 |
14 |
28 |
43 |
51 |
58 |
|
10kgm2 + 25mm glass |
15 |
15 |
33 |
46 |
52 |
59 |
|
5kgm2 + 50mm glass |
12 |
20 |
37 |
46 |
53 |
59 |
|
10kgm2 + 50mm glass |
13 |
22 |
39 |
47 |
54 |
60 |
The acoustic guidance above is based on a configuration of a flat panel through and through test only.
The actual performance of TekHVAC polymeric acoustic lagging quilt is a complex subjective subject and must be calculated by an acoustician on a job to job basis as it will be subject to different criteria, taking into account shapes (circular, square or rectangular) internal size, steel thickness, volume movement of air or gasses within the duct along with the environment were the ducting is situated. Calculations and tests on ducting have shown that the overall performances will generally produce results close or lower to the above performance guidance figures.
Where a higher acoustic reduction is required, or a high level of vibration may be occurring within a duct, the TekHVAC acoustic damping self-adhesive matt should be applied to the ductwork before fitting the TekHVAC polymeric acoustic lagging quilt.
This will greatly improve the results at low frequencies and the resonance of the rigid material it is applied to.
The statements and technical information in this data sheet are the results of tests or laboratory evaluations and represent the extent of information supplied by core material manufacturers.
No guarantee or warranty, expressed or implied, is given as to performance or suitability for application. Users to access suitability for their applications. Information is believed current at time of publication.
Downloads
Downloads
Delivery Information
Delivery Information
Delivery Charges and Information
At Insulation UK, we strive to provide clear and transparent
information regarding delivery charges and order processing. Below are the
details of our delivery charges, minimum order requirements, and additional
delivery options.
Delivery Charges
We have structured our delivery charges based on the total value of your order.
For orders up to £500 ex- VAT the delivery charge is £50 ex-VAT
Orders above £500 ex VAT will qualify for free delivery.
Local Delivery Charge
For deliveries within 35 miles of Postcode S63 9BL,
we offer a local delivery service.
For orders up to £500 ex-VAT, the delivery charge is
£35 ex-VAT.
Orders above £500 ex-VAT will qualify for free delivery.
Order Processing Information
Orders are processed Monday to Friday from 8 AM to 5 PM.
Orders placed over the weekend or on bank holidays will be processed on the
next working day. Delivery time frames are calculated starting the day after
your order has been processed, and you will receive tracking information once
your order is dispatched.
Weekend Deliveries
Weekend deliveries are available upon request and are
subject to the availability of existing delivery routes. Please contact us to
confirm if a weekend delivery can be arranged for your order.
Orders Placed on Weekends and Holidays
Please note that any orders placed on weekends or bank
holidays will be processed on the next working day. This may affect your
expected delivery time, so we advise placing your order accordingly. For more
information on delivery times during weekends and holidays, please contact our
customer support team.
Collections
To collect your order, please email us at sales@insulationuk.co.uk with
your contact details, along with the products and quantities you require. Our
team will review your email and respond with a secure payment link. For your
security, we do not process payments over the phone. Once payment is received,
your order will be processed, and our team will notify you when it’s ready for
collection.
Product Delivery Times
Most of our orders are dispatched within 3 working days.
However, this time frame may extend to 5 working days for larger orders.
Specialty items may take between 5 to 7 working days. Please note that delivery
time frames can change depending on the product. For the most up-to-date
delivery times, please check the product page or contact us directly.
We will contact you within 24 to 48 hours after your order
is placed to confirm delivery times and dates. If you have urgent delivery
needs, please reach out to us for further assistance.
Specifications
- Brand:
- TEKHVAC
- Length:
- 1200 mm
- Width:
- 2000.0 mm
- Thickness:
- 53.0 mm
- Unit Coverage:
- 2.4 M²
