Tekwarm Routed Chipboard UFH Panels | 2400mm x 600mm x 22mm

TekwarmSKU: BM00089

Price:
Sale price£33.80

inc VAT

Pay in 3 prices shown are an example only. Total calculated at checkout.

Delivery within 2 - 5 working days

Free Delivery On Orders
Over £599.95 Ex-Vat

Need something quicker?

Contact us on 0300 303 4578
or email here!

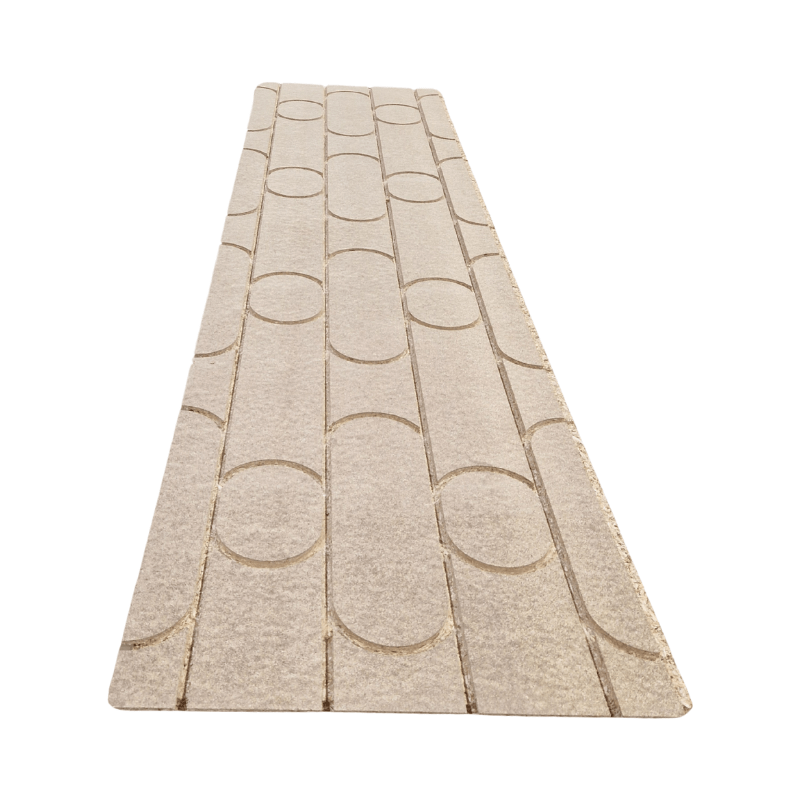

Enhance Your Underfloor Heating with Tekwarm Chip-UFH Board

Tekwarm Chip-UFH Board is a solution designed for evenly distributed underfloor heating. This moisture-resistant routed chipboard combines efficiency with durability, and provides optimal warmth and comfort to your space. Its high conductivity ensures an even heat distribution, making it an ideal substrate for underfloor heating pipes.

Whether for new build projects or retrofit installations, Tekwarm Chip-UFH Board is the ideal choice for achieving superior heating performance.

Key Features

  • Moisture Resistance: Crafted for durability with moisture-resistant properties, ensuring longevity and reliability.
  • High Conductivity: Highly conductive material guarantees an even spread of heat across the floor, enhancing the efficiency of underfloor heating systems.
  • Versatile Insulation Options: Choose from standard, foiled, or bonded variants, with the option to add thermal or acoustic insulation tailored to your project's needs.
  • Precision Grooves for Heating Pipes: Each board is meticulously grooved on one side, precisely accommodating 12mm diameter underfloor heating pipes, complete with radius returns for optimal efficiency.
  • Customisable Pipe Layouts: Offering a variety of grooved pipe layouts and patterns to suit diverse requirements and maximise system customisation. Further details are available upon request.
  • Optimised for 12mm Pipes: The board's design is ideally suited for 12mm underfloor heating pipes, ensuring a perfect match for streamlined heating installation.
  • Structured Support: Designed with 200mm or 150mm board centers, Tekwarm Chip-UFH Board provides robust support, ensuring stability across the heating system.
  • Seamless Installation: Featuring tongue and groove edges, these boards promise easy and secure installation, resulting in a seamless fit and flawless finish. These boards are also designed to be installed directly onto floor joists, with standard chipboard screws and joint adhesive, making it suitable for a wide range of projects.
  • Flexible Finishing Options: Accommodates a variety of floor finishes with the additional application of a Tekwarm Overlay Board or suitable plywood, depending on the requirements.

Technical Specifications

Specification Details
Board Size 2400mm x 600mm x 22mm
Material Moisture Resistant Chipboard
Pipe Compatibility 12mm Diameter Underfloor Heating Pipes
Thermal/Acoustic Insulation Optional (Standard Foiled or Bonded)
Additional Overlay 6mm or 9mm Plywood/Tekwarm Overlay Board
Installation Base Suitable for Direct Installation onto Floor Joists
Finish Compatibility Tekwarm Overlay Board, Plywood, Laminates, Hardwood Flooring, Carpets
Pipe Layouts and Patterns Standard and Custom Options Available

Installation Process

Tekwarm Chip-UFH Board offers a streamlined installation directly onto floor joists, which are often insulated for enhanced performance. Its design features tongue and groove edges for a seamless and secure fit between panels, creating an ideal base for your underfloor heating system. The installation is simplified with the use of standard chipboard screws and joint adhesive, providing a solid foundation for the heating elements.

Finishing Touches

For the finishing layer, a Tekwarm Overlay Board or appropriate plywood is essential before any floor finishes are applied. The Tekwarm Overlay Board can be laid down as a floating floor, offering ease and flexibility. When opting for plywood, ensure it is firmly attached with suitable fixings for a sturdy base. Following the installation of the substrate, floor finishes such as laminates, hardwood, or carpets can be applied, utilizing the correct underlay as recommended by the floor finish manufacturer.

FAQs

How does Tekwarm Chip-UFH Board enhance underfloor heating systems?

Tekwarm Chip-UFH Board is designed to significantly optimise underfloor heating (UFH) systems by evenly distributing heat across the floor for consistent and comfortable warmth. The board's routed design secures underfloor heating pipes, facilitating an even spread of heat. Importantly, it prevents heat from penetrating downwards, directing it upwards into the room where it is needed most. This maximises the efficiency of the heating system, ensuring that the warmth is concentrated within the living spaces, enhancing both comfort and energy efficiency.

Does the added foil layer make a difference?

Absolutely, the foil layer in the foiled version of the Tekwarm Chip-UFH Board plays a crucial role in enhancing thermal efficiency. By slowing the transfer of heat and acting like a mirror, the foil reflects heat into the room, rather than allowing it to dissipate. This reflective property ensures a more effective distribution of heat, significantly improving the underfloor heating system's performance and contributing to energy savings.

Absolutely, the foil layer in the foiled version of the Tekwarm Chip-UFH Board plays a crucial role in enhancing thermal efficiency. By slowing the transfer of heat and acting like a mirror, the foil reflects heat into the room, rather than allowing it to dissipate. This reflective property ensures a more effective distribution of heat, significantly improving the underfloor heating system's performance and contributing to energy savings.

When should I choose the plain version, and when should I use the foil version?

Selecting between the plain and a foil versions depends on the specific requirements for thermal efficiency in your space. For areas where enhanced thermal efficiency and improved heat distribution are priorities, the foil version is recommended due to its reflective properties that contribute to a more evenly heated space and better energy efficiency. The plain version is suited for standard installations where the primary need is for underfloor heating support and basic insulation.

Can these panels be used in both new build and retrofit projects?

Yes, Tekwarm Chip-UFH Boards are designed for versatility, making them suitable for both new build constructions and retrofitting existing properties. Their compatibility with various floor finishes and straightforward installation process allows them to be easily integrated into a wide range of projects.

What are the dimensions of the Tekwarm Routed Chipboard UFH Panels?

Tekwarm Routed Chipboard UFH Panels are sized at 2400mm x 600mm x 22mm, accommodating 12mm diameter underfloor heating pipes with radius returns. This size is tailored to efficiently cover standard floor areas while ensuring a seamless fit for the heating system.

Are Tekwarm Chip-UFH Boards structural?

Not as such. Even though the Chipboards are, routing the panels for underfloor heating pipe accommodation impacts their structural integrity, which is why the use of a Tekwarm Overlay Board or appropriate plywood is recommended. This overlay provides the necessary structural support and stability for the floor finish, ensuring the durability and safety of the flooring system.

Are other routed pipe layouts and patterns available?


Absolutely! We provide a range of routed pipe layouts and patterns to suit different underfloor heating system designs. Please contact us for more information and customisation options.

Is the Tekwarm Chip-UFH Board readily available?


Yes, the standard pattern board is usually available from stock, ensuring quick and convenient access to our quality products, this includes the foiled version also.

Datasheet

Tekwarm Chip-UFH Board Data Sheet



Order Value Delivery Charge
Up to £200.00 ex-vat £100.00 ex-vat
£200.00 - £599.95 ex-vat £59.95 ex-vat
Above £599.95 ex-vat Free Delivery



Weekend Delivery
Available upon request



Parcel Rates
Delivery charge may vary depending on quantity and volume of your order.
Pricing will be calculated during checkout.



Local Delivery Charge
Within 35 miles of Postcode S63 9BL - Up to £500.00 ex-vat
Delivery Charge £35.00 ex-vat

Collections
Please contact us to arrange collections
Tel: 0300 303 4578 | Email: sales@insulationuk.co.uk



Delivery charges will automatically be calculated within the checkout process.
Orders are only processed for delivery between 8.00am - 5.00pm Monday to Friday excluding bank holidays.
Moffett offload will be used for large bulky deliveries and only when agreed with you.
Please advise of any access issues on ordering.
Delivery is Kerbside only.
In the unlikely event that your delivery is not correct or damaged please notify us immediately and mark any issues on the delivery slip.



    Where We Deliver

    Delivery Areas

    We have a fleet of FORS delivery vehicles all with Moffett mechanical off loads that deliver nationwide. Sometimes we may use 3rd party carriers for smaller orders.



      Product Delivery Times

      The vast majority of our orders are dispatched within 3 working days, this can however be up to 5 working days, please contact us if you require something urgent.
      Speciality items may take up to 5-7 working days.
      We will contact you with in 24/48hrs of your order been placed to confirm delivery times and dates.
