Kingspan Thermaroof TR27 Flat Roof PIR Insulation Board is designed to work seamlessly with a wide range of waterproofing systems, including fully adhered single-ply, partially bonded built-up felt, mastic asphalt, and cold liquid applied waterproofing. Its compatibility with most green roof systems further enhances its appeal, making it a versatile choice for both new build and refurbishment projects.
Exceptional Features and Benefits:
- Optimal Thermal Efficiency: Stands among the top insulation solutions for flat roofs, offering thermal conductivities as low as 0.024 W/mK, depending on the insulation thickness.
- Versatile Compatibility: Specially designed to complement non-bituminous membranes and various bitumen-based and mastic asphalt waterproofing systems.

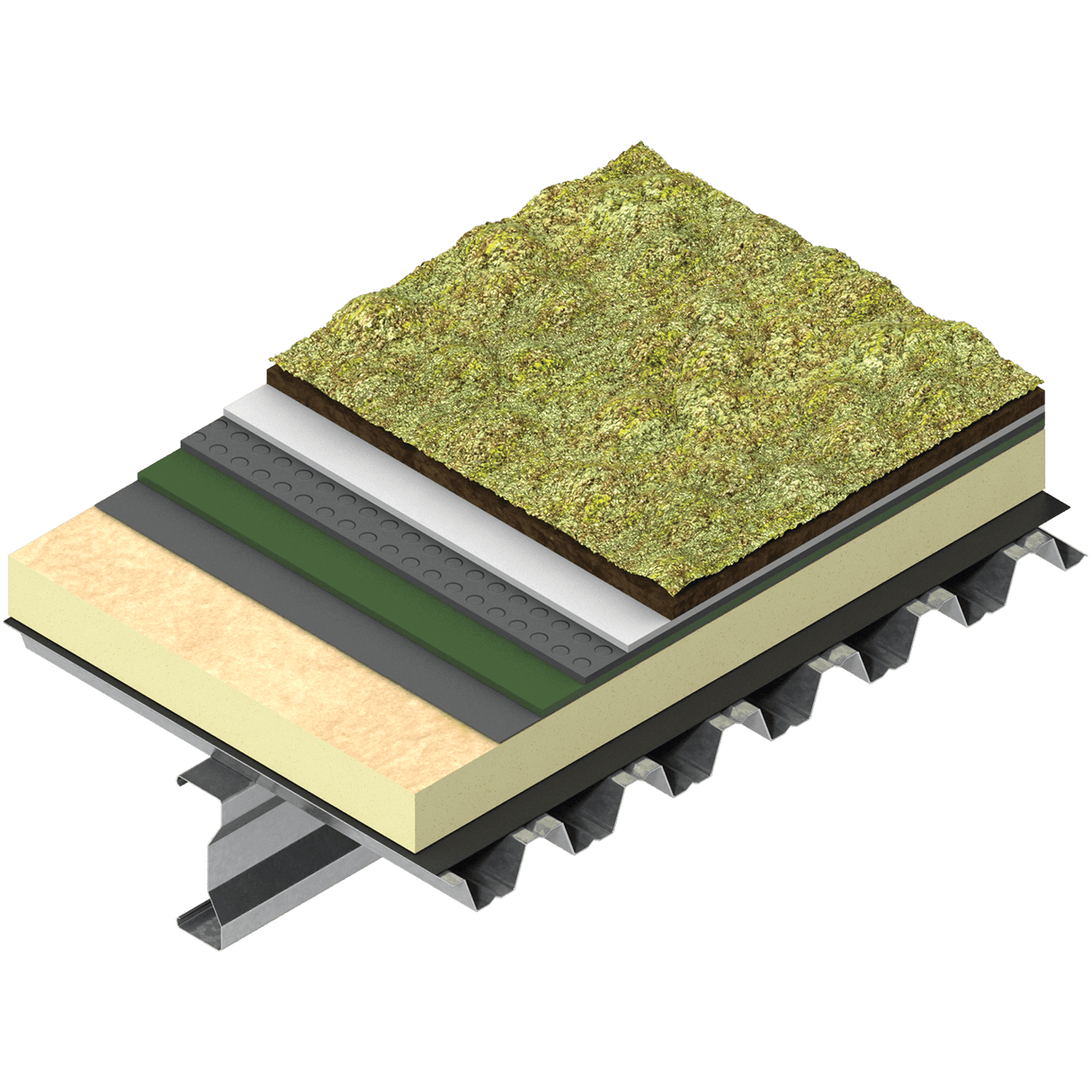

- Green Roof Ready: Thermaroof TR27's compatibility with most green roof systems allows for sustainable building practices, enhancing building aesthetics and environmental benefits.
- User-Friendly Installation: Lightweight and easy to manoeuvre, TR27 boards ensure a straightforward and efficient installation process.
Applications:

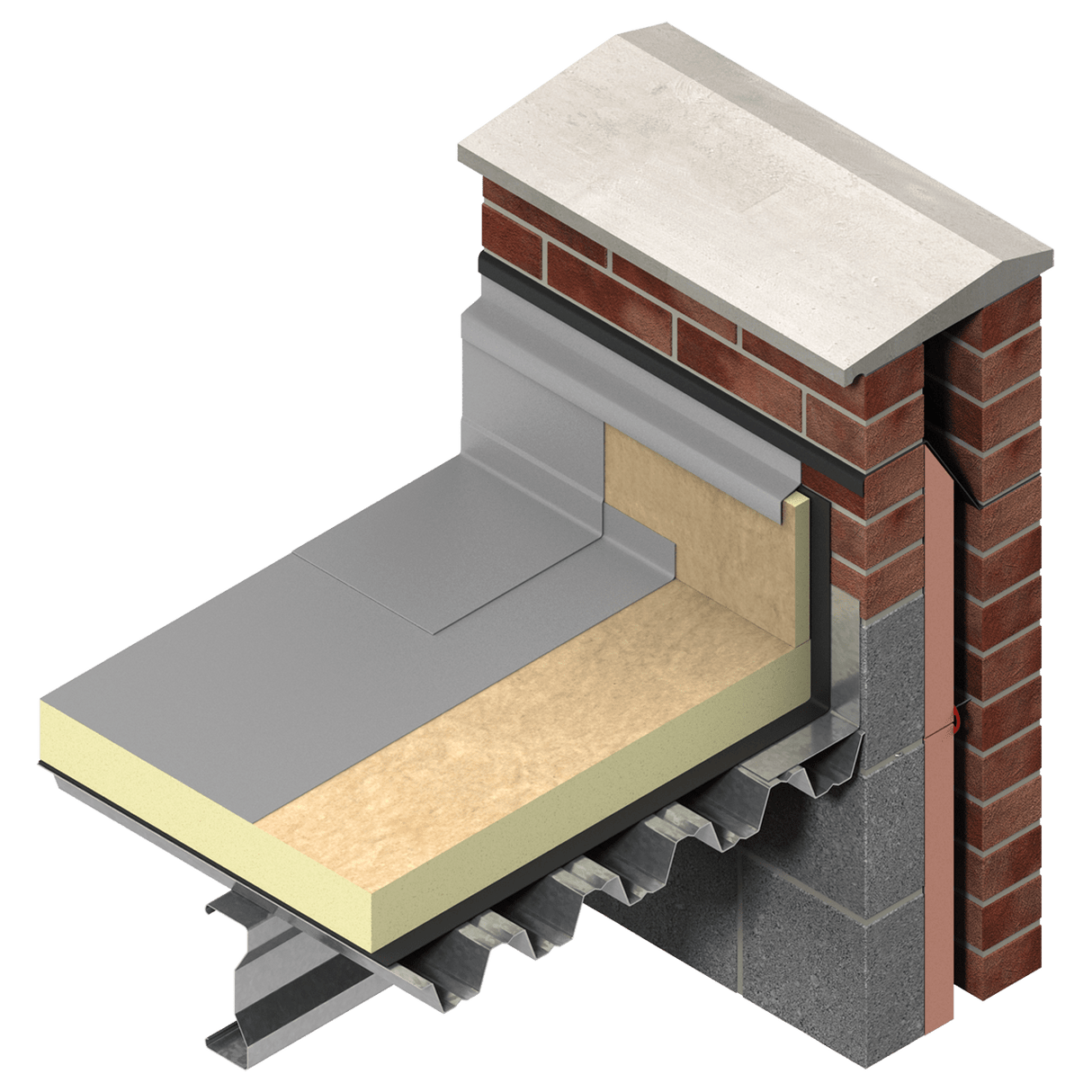

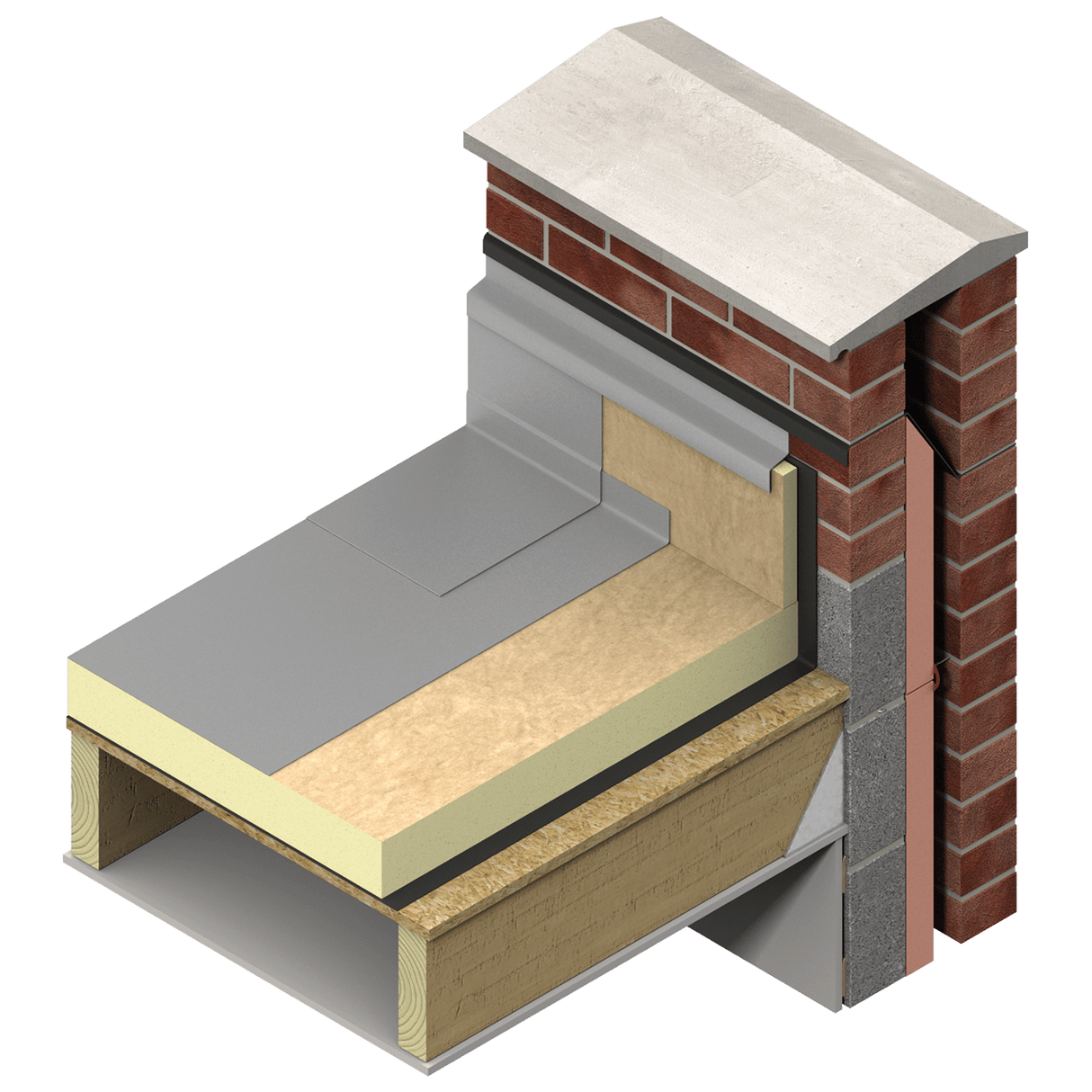

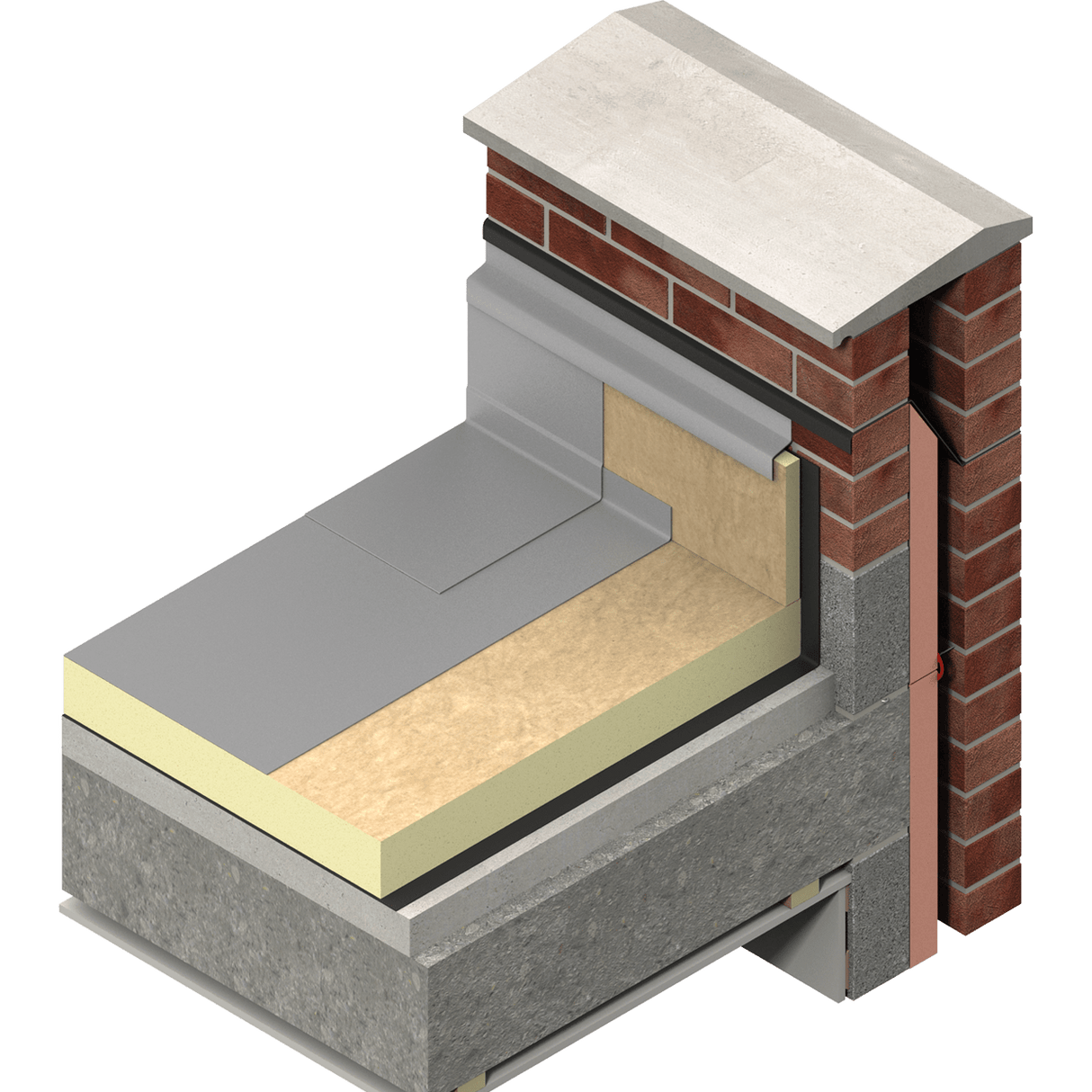

Ideal for insulating flat roofs waterproofed with an array of systems, Thermaroof TR27 provides a robust and reliable insulation layer that enhances the longevity and energy efficiency of roofing structures.
Technical Specifications:

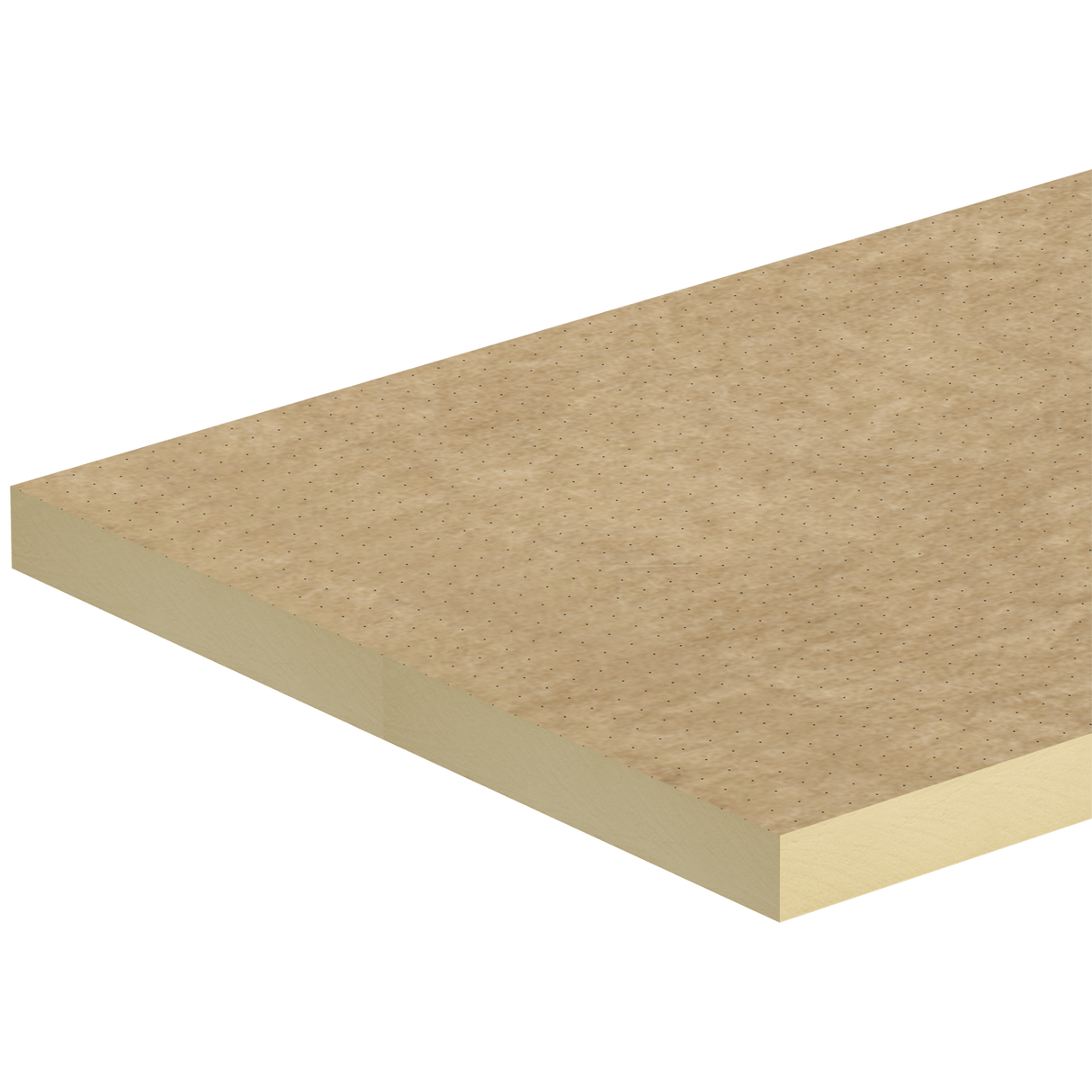

- Material: High-performance rigid thermoset polyisocyanurate (PIR) insulation, renowned for its durability and insulating properties.
- Thermal Conductivity: Offers graded thermal conductivity, ensuring maximum insulation efficiency across different thicknesses.
- Facings: Equipped with coated glass tissue facings on both sides, enhancing the board's strength and waterproofing compatibility.
- Dimensions: Available in standard sizes of 1200 x 600 mm and 1200 x 1200 mm, with thicknesses ranging from 25 to 150 mm, accommodating a variety of project requirements.
- Fire Safety: Achieves a Euroclass F rating under System 4 AVCP, meeting industry safety standards.
- Compressive Strength: Demonstrates exceptional durability with a compressive strength exceeding 150 kPa at 10% compression.
DOWNLOADS
Kingspan Thermaroof TR27 Flat Roof Board Brochure
| Feature | Values |
|---|
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 600 mm |
| Thickness: | 25 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 8.64 M² |
| Manufactures Part Number: | 100000001649 |
| Pack SIze: | 12 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 50 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 8.64 M² |
| Manufactures Part Number: | 100000003382 |
| Pack SIze: | 6 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 60 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 7.2 M² |
| Manufactures Part Number: | 100000005619 |
| Pack SIze: | 5 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 80 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 5.76 M² |
| Manufactures Part Number: | 100000005621 |
| Pack SIze: | 4 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 100 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 5.76 M² |
| Manufactures Part Number: | 100000005623 |
| Pack SIze: | 4 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 120 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 5.76 M² |
| Manufactures Part Number: | 100000005625 |
| Pack SIze: | 4 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 130 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 4.32 M² |
| Manufactures Part Number: | 100000037956 |
| Pack SIze: | 3 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 140 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 2.88 M² |
| Manufactures Part Number: | 100000006055 |
| Pack SIze: | 2 |
| Brand: | Kingspan |
| Length: | 1200 mm |
| Width: | 1200 mm |
| Thickness: | 150 mm |
| Material: | Polyisocyanurate |
| Unit Coverage: | 2.88 M² |
| Manufactures Part Number: | 100000018790 |
| Pack SIze: | 2 |
