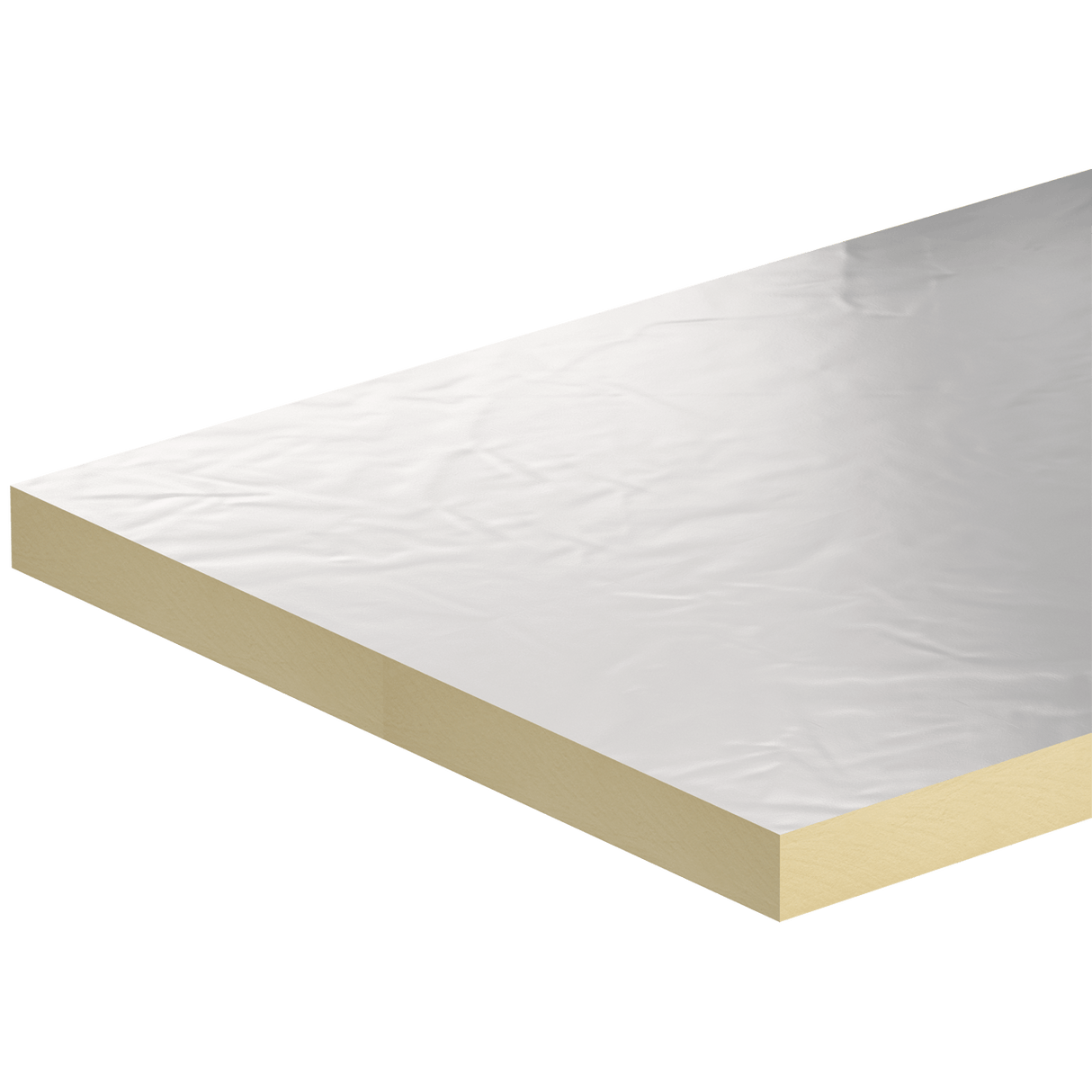

Kingspan Thermaroof TR26 is a leading PIR (polyisocyanurate) insulation board engineered specifically for flat roofs.
With its superior thermal conductivity of 0.022 W/mK, TR26 not only meets but exceeds the demands of modern construction, making it fully compatible with most mechanically fixed single-ply waterproofing systems and green roof systems.
Whether you're embarking on a new build or undertaking a refurbishment project, Thermaroof TR26's ease of handling and installation aligns perfectly with fast-track building schedules.
Exceptional Features and Benefits:
-
Unrivalled Thermal Efficiency: One of the most thermally efficient insulation options for flat roofs, ensuring significant energy savings.
-

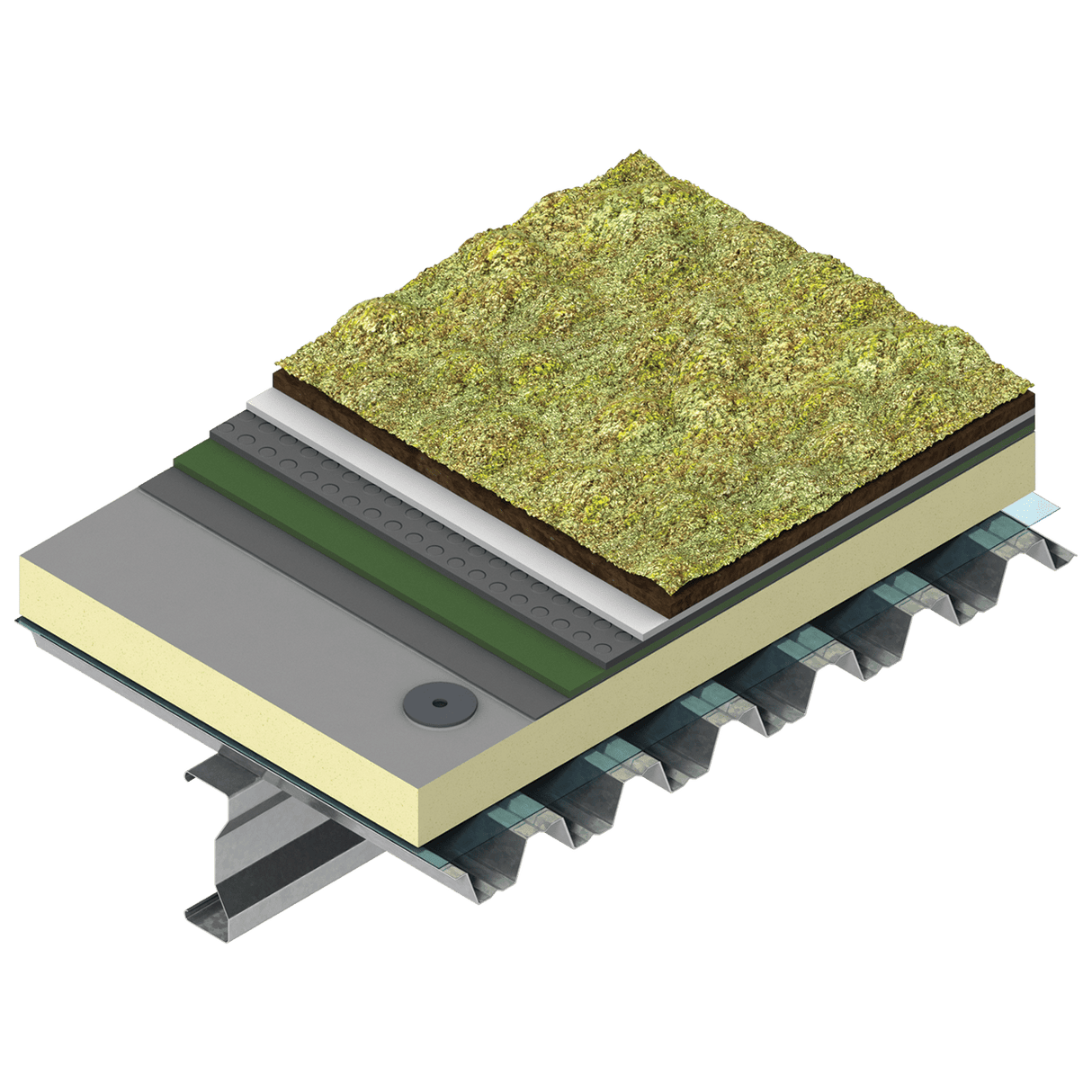

Wide Compatibility: Seamlessly works with the majority of mechanically fixed single-ply waterproofing and green roof systems, offering versatile application possibilities.
-
Fast-Track Installation: Specifically designed to support rapid construction timelines, facilitating swift project completion without compromising quality.
-
User-Friendly: The lightweight and easy-to-manage boards guarantee a hassle-free installation process, making it a preferred choice among professionals.
Applications:

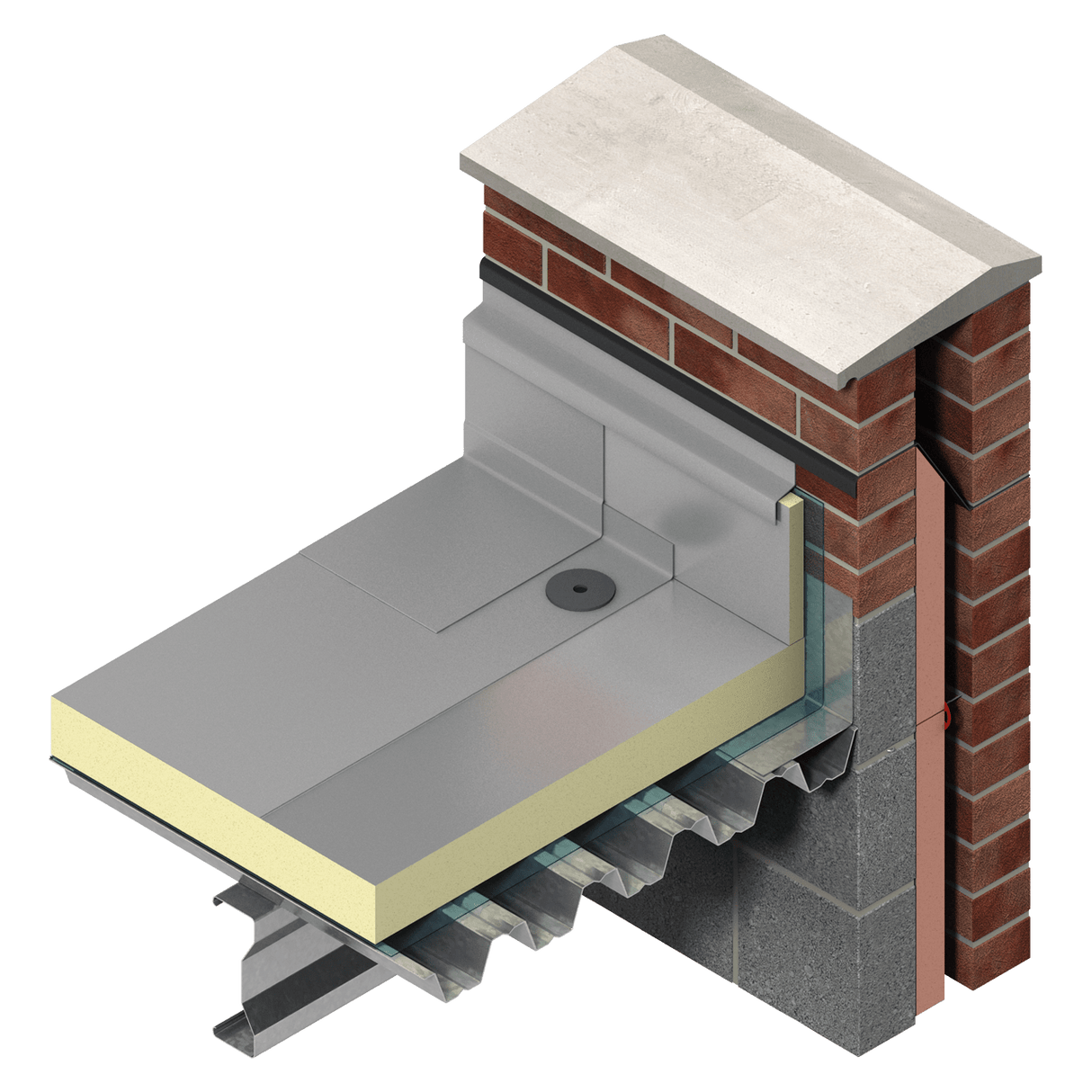

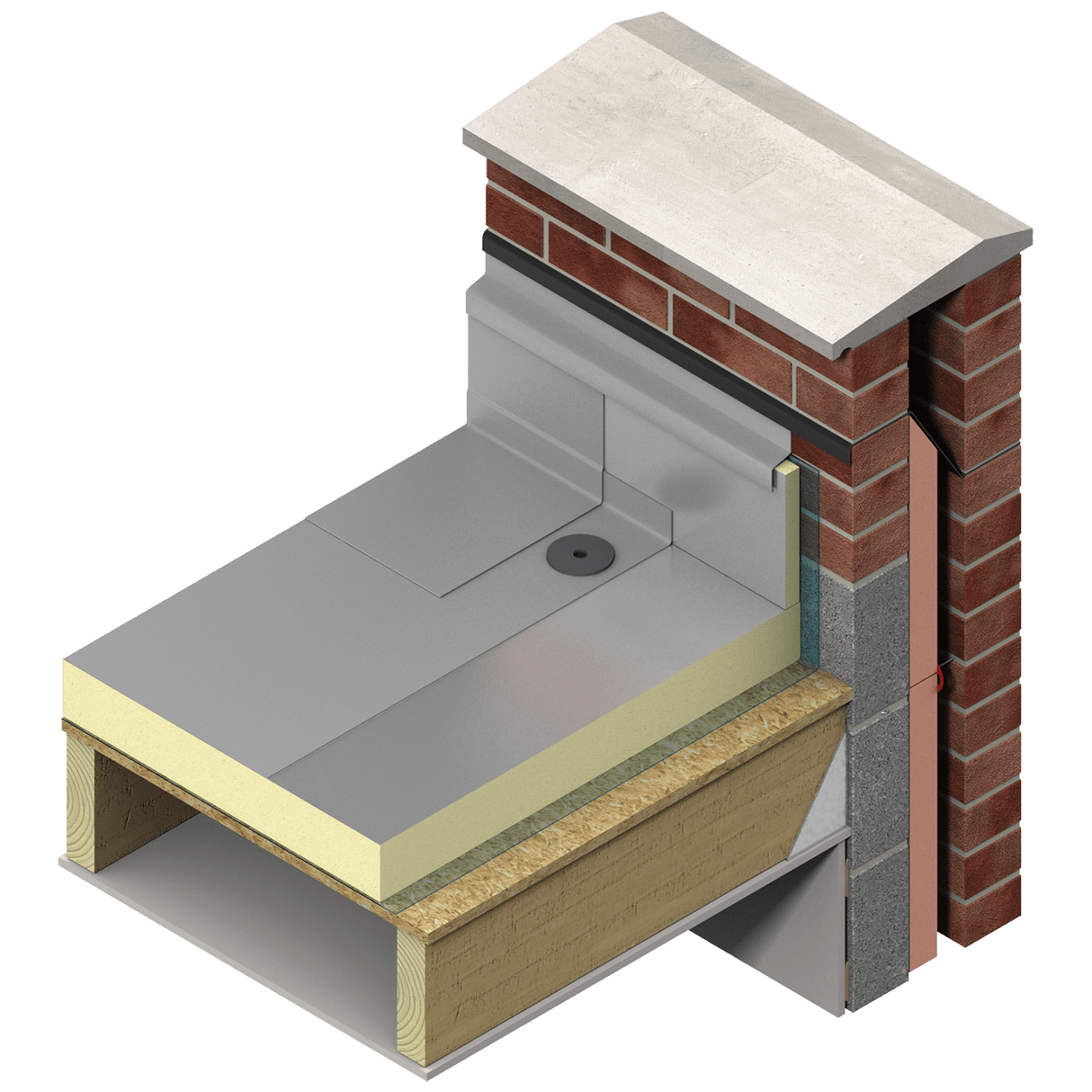

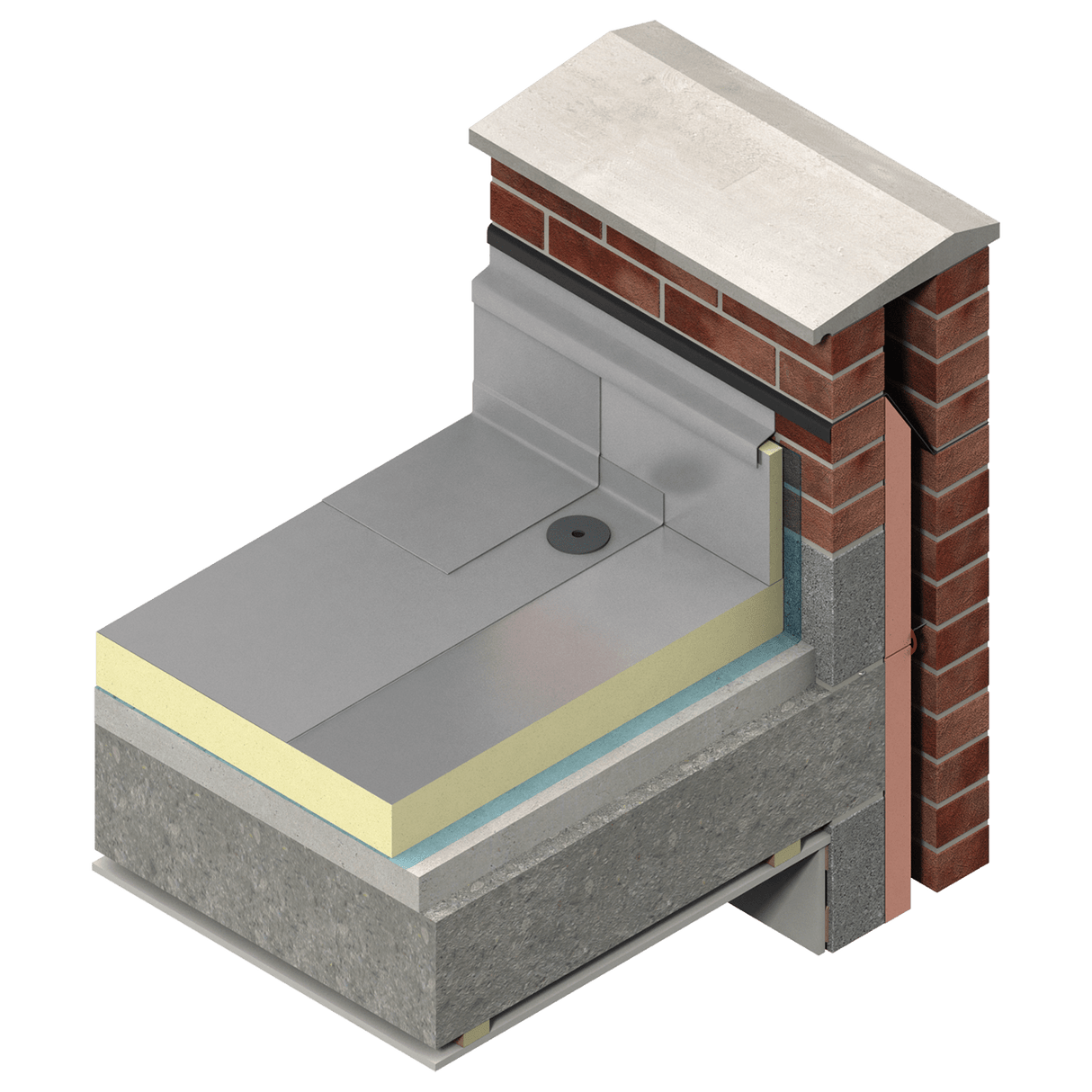

Kingspan Thermaroof TR26 is specifically tailored for insulation on flat roofs waterproofed with mechanically fixed single-ply systems, providing a reliable and efficient insulation layer that enhances the overall performance and longevity of roofing systems.
Technical Specifications:
-
Material: A high-performance rigid thermoset polyisocyanurate (PIR) insulation, known for its durability and thermal efficiency.
-
Thermal Conductivity: Boasts an exceptional thermal conductivity of 0.022 W/mK, facilitating superior insulation performance.
-
Facings: Equipped with low emissivity composite foil facings on both sides, enhancing thermal resistance.
-
Dimensions: Available in a standard size of 1200 mm width by 2400 mm length, with thicknesses ranging from 25 to 150 mm, catering to a wide array of insulation requirements.
-
Fire Safety: Holds a Euroclass F rating under System 4 AVCP, adhering to safety standards within the industry.
-
Compressive Strength: Demonstrates a robust compressive strength exceeding 150 kPa at 10% compression, indicative of the product's durability.
With Kingspan Thermaroof TR26, you'll achieve enhanced thermal efficiency, support sustainable building practices, and ensure a swift, effective installation, all contributing to a superior building envelope performance.
DOWNLOADS
Kingspan Thermaroof TR26 Flat Roof Board Brochure
Specifications
Feature |
Values |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
25 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
34.56 M² |
Manufactures Part Number: |
100000001551 |
Pack SIze: |
12 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
50 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
17.28 M² |
Manufactures Part Number: |
100000001566 |
Pack SIze: |
6 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
60 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
14.4 M² |
Manufactures Part Number: |
100000001575 |
Pack SIze: |
5 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
70 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
11.52 M² |
Manufactures Part Number: |
100000001585 |
Pack SIze: |
4 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
80 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
11.52 M² |
Manufactures Part Number: |
100000001591 |
Pack SIze: |
4 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
90 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
8.64 M² |
Manufactures Part Number: |
100000006500 |
Pack SIze: |
3 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
100 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
8.64 M² |
Manufactures Part Number: |
100000001619 |
Pack SIze: |
3 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
110 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
8.64 M² |
Manufactures Part Number: |
100000001632 |
Pack SIze: |
3 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
120 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
5.76 M² |
Manufactures Part Number: |
100000001637 |
Pack SIze: |
2 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
140 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
5.76 M² |
Manufactures Part Number: |
100000001642 |
Pack SIze: |
2 |
Brand: |
Kingspan |
Length: |
2400 mm |
Width: |
1200 mm |
Thickness: |
150 mm |
Material: |
Polyisocyanurate |
Unit Coverage: |
5.76 M² |
Manufactures Part Number: |
100000001643 |
Pack SIze: |
2 |
