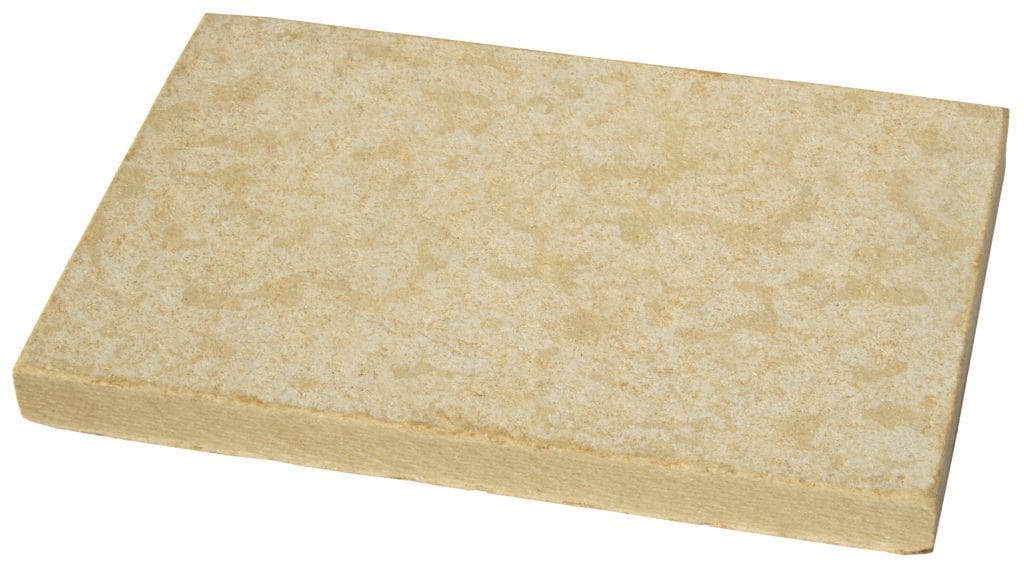

RCM Y-Wall | 2400 x 1200 x 12mm: The Versatile Sheathing Board for Robust Construction
Overview:
Product: RCM Y-Wall
Thickness: 12mm
Dimensions: 2400 x 1200mm
Features:
- High-performance, flexible cementitious sheathing board
- A1 Reaction to Fire rating for non-combustibility
- Lightweight yet robust for easy handling and installation
Applications: Ideal for external and internal sheathing, suitable for a variety of construction environments, including residential, commercial, and industrial projects
Key Features:
Safety and Compliance: Conforms to CE & UKCA standards, classified as A1 for non-combustibility, providing superior fire safety.
Durability: Designed to resist moisture, weathering, and impact, ensuring long-term performance in diverse environments.
Flexibility: Suitable for both timber and steel frame construction, offering versatility across different build types.
Easy Installation: Lightweight design makes handling and installation straightforward, reducing labour time and costs.
Enhanced Protection: Provides excellent protection against external elements, acting as a robust barrier in external wall constructions.
Technical Specifications:
| Parameter | Value | Tolerance |
|---|---|---|
| Reaction to Fire (EN 13501-1) | A1 | - |
| Density | 1400 kg/m3 | +/- 10% |
| Modulus of Elasticity | ≥4500 N/mm2 | - |
| Bending Strength | ≥10 N/mm2 | - |
| Surface Alkalinity | 10 - 12 pH | - |
| Moisture Content (ex-production %) | 8 % | +/- 3 % |
| Swelling in Thickness (average), G% | ≤0.5 % | - |
| Thermal Conductivity | ≤0.40 λW/(m0K) | - |
| Water Vapour Transmission (wet/dry) | 20 µ / 40 µ | - |
| Formaldehyde Release | E1 class | - |
| Thickness | 12mm | +/- 1.0mm |
| Length and Width | 2400x1200mm | +/- 5mm |
| Number of Boards per Pallet | 50 | - |
Applications:
External sheathing for timber and steel frames
Internal partition walls
Façade systems
Modular construction
| Feature | Values |
|---|
| Brand: | RCM |
| Length: | 2400 mm |
| Width: | 1200 mm |
| Thickness: | 12 mm |
