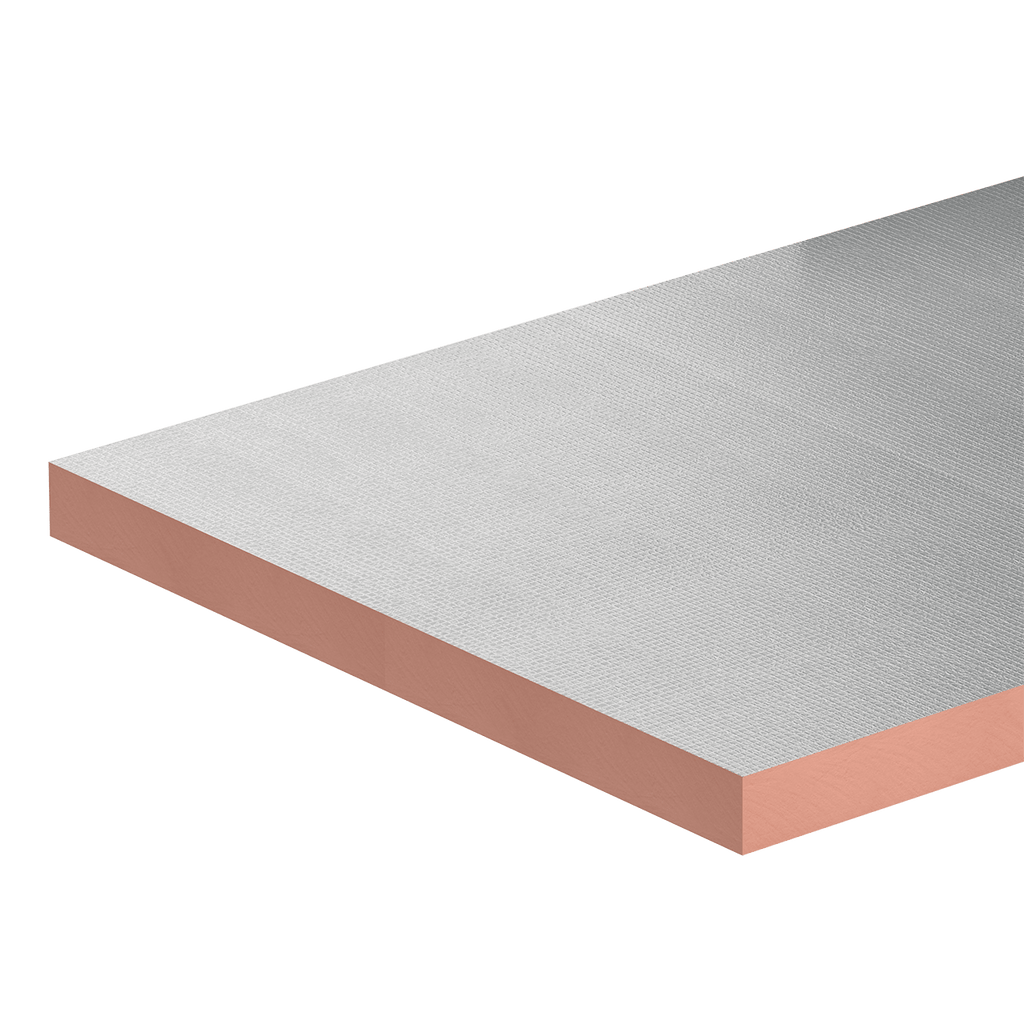

Kooltherm K110 Soffit Board is a state-of-the-art soffit insulation solution designed to meet the highest standards of energy efficiency and installation convenience.
With an exceptional thermal conductivity of 0.019 W/mK, it enables the construction of thin soffit structures without compromising on insulation performance. Its ease of installation sets it apart from traditional insulation materials, providing a cost-effective and time-saving solution for modern building projects.
Features and Benefits
-
Ultra-Thin Insulation: Kooltherm K110 is the thinnest insulation solution for soffits available, facilitating high U-values with minimal material thickness. This feature allows for sleeker architectural designs and maximises usable space beneath soffits.
-
Rapid Installation: Designed for quick and easy installation, Kooltherm K110 can significantly reduce labour costs and project timelines, making it an ideal choice for projects with strict deadlines or budget constraints.
Application Areas

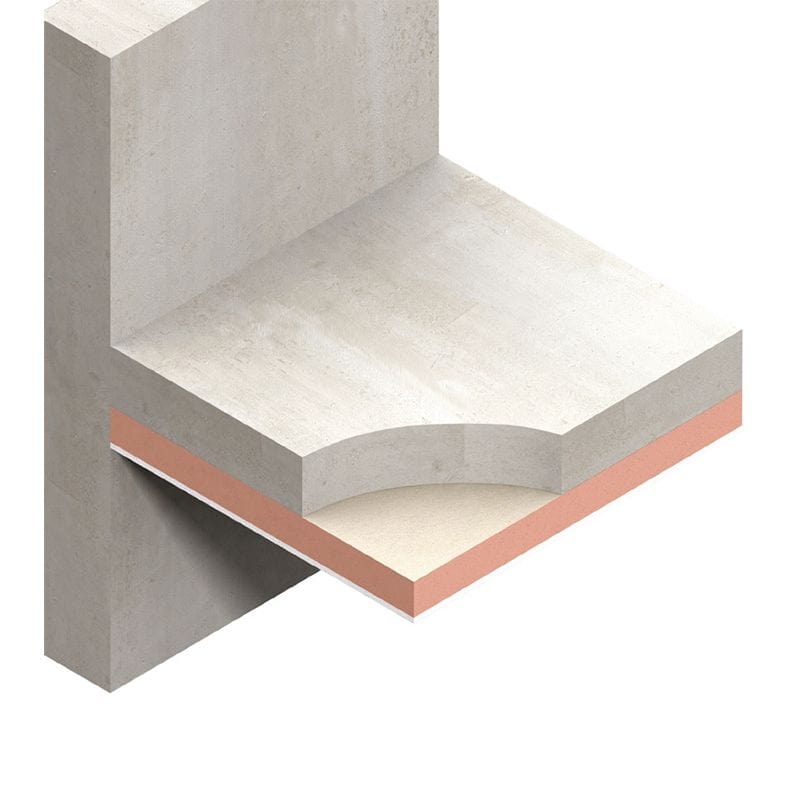

Kooltherm K110 is specifically developed for insulating structural ceilings (soffits), enhancing the thermal efficiency of a wide range of buildings, from commercial properties to residential projects.
Technical Specifications
- Dimensions: L1200 x W450 x D90mm
-
Facings:
- Inner Facing: A glass tissue-based facing, adhesively bonded to the insulation core, ensuring a durable and reliable internal finish.
- Outer Facing: A low emissivity composite foil, also adhesively bonded to the insulation core, enhances the thermal resistance of the soffit.
- Thermal Conductivity: 0.019 W/mK
- Compressive Strength: 100kPa
- Certifications: BBA Certified, ensuring compliance with the highest industry standards.
- Reaction to Fire (Euroclass): Achieves Euroclass C-s2,d0 for the outer (exposed) composite foil facing when classified to EN 13501-1: 2018. The inner (non-exposed) glass tissue facing is NPD.
- Material: A premium performance, lower-lambda rigid thermoset phenolic insulation, known for its exceptional insulation properties and durability.
Kooltherm K110 Soffit Board revolutionises soffit insulation, offering unmatched thermal efficiency and installation speed. Its innovative design and superior materials ensure that your building project benefits from the highest standards of insulation, contributing to a sustainable and comfortable indoor environment.
DOWNLOADS
Kingspan Kooltherm K110 Brochure
| Feature | Values |
|---|
| Brand: | Kingspan |
| Length: | 2400 mm |
| Width: | 1200 mm |
| Thickness: | 70 mm |
| Material: | Phenolic |
| Unit Coverage: | 11.52 M² |
| Pack SIze: | 4 |
| Brand: | Kingspan |
| Length: | 2400 mm |
| Width: | 1200 mm |
| Thickness: | 90 mm |
| Material: | Phenolic |
| Unit Coverage: | 8.64 M² |
| Manufactures Part Number: | 100000033744 |
| Pack SIze: | 3 |
