Insulation Anchors

EWI Insulation Anchors - Box x 250

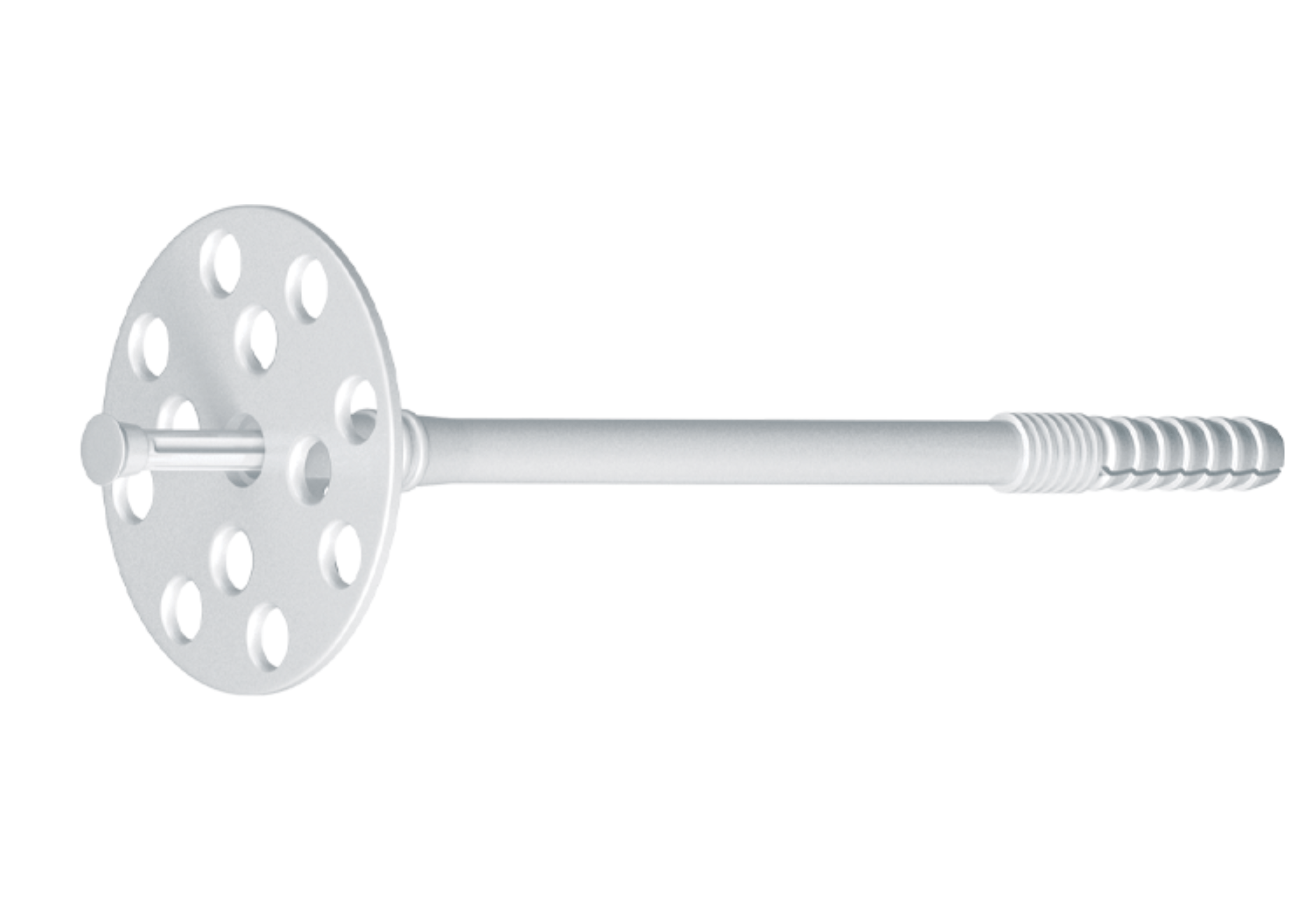

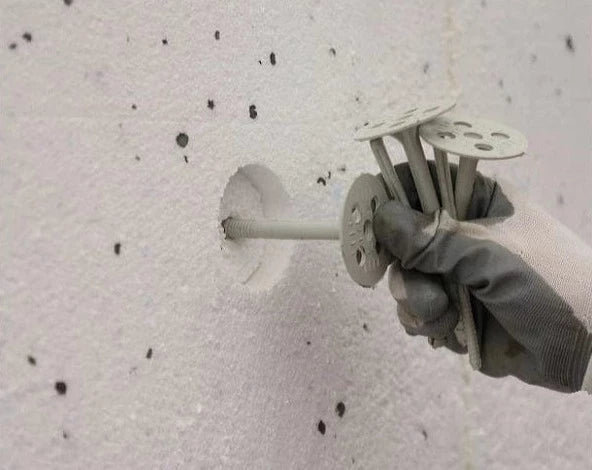

These insulation anchors are used to mechanically fix EPS (expanded polystyrene) and XPS (extruded polystyrene) boards to vertical plane.

• Installation in all substrates (categories A,B,C,D,E).

• The plastic nail reduces heat transmission (value 0.0W/K)

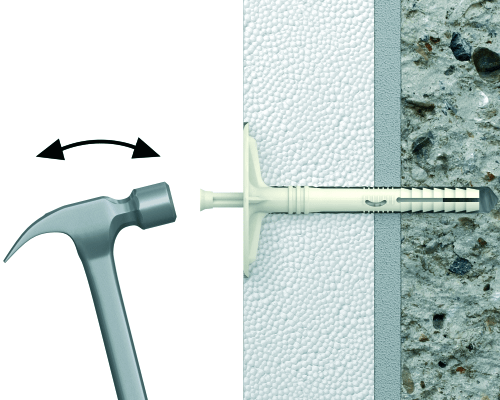

• Plastic nail reinforced with glass fibre allows fast and trouble-free installation with correct expansion of the plug.

• Expansion zone designed for low embedment depths, reducing the amount of drilling required.

• Can be used with additional KWL insulation holding plate, available in 90, 110 and 140mm flange sizes (recommended for soft insulation materials such as mineral wool).

• Optimal product parameters enable cost-saving solutions.

• Optimum plate stiffness ensures stability and excellent pull-over values

Applications

• External Thermal Insulation Composite Systems (ETICS)

• Polystyrene boards

• Mineral wool (MW) boards

• Light wood wool building boards

• Polyurethane boards

• Wood fibre boards

• Lightweight recycled panels



These Products will not work as Secondary Fixings for Insulated Plasterboard Products

Data Sheet - Click Here

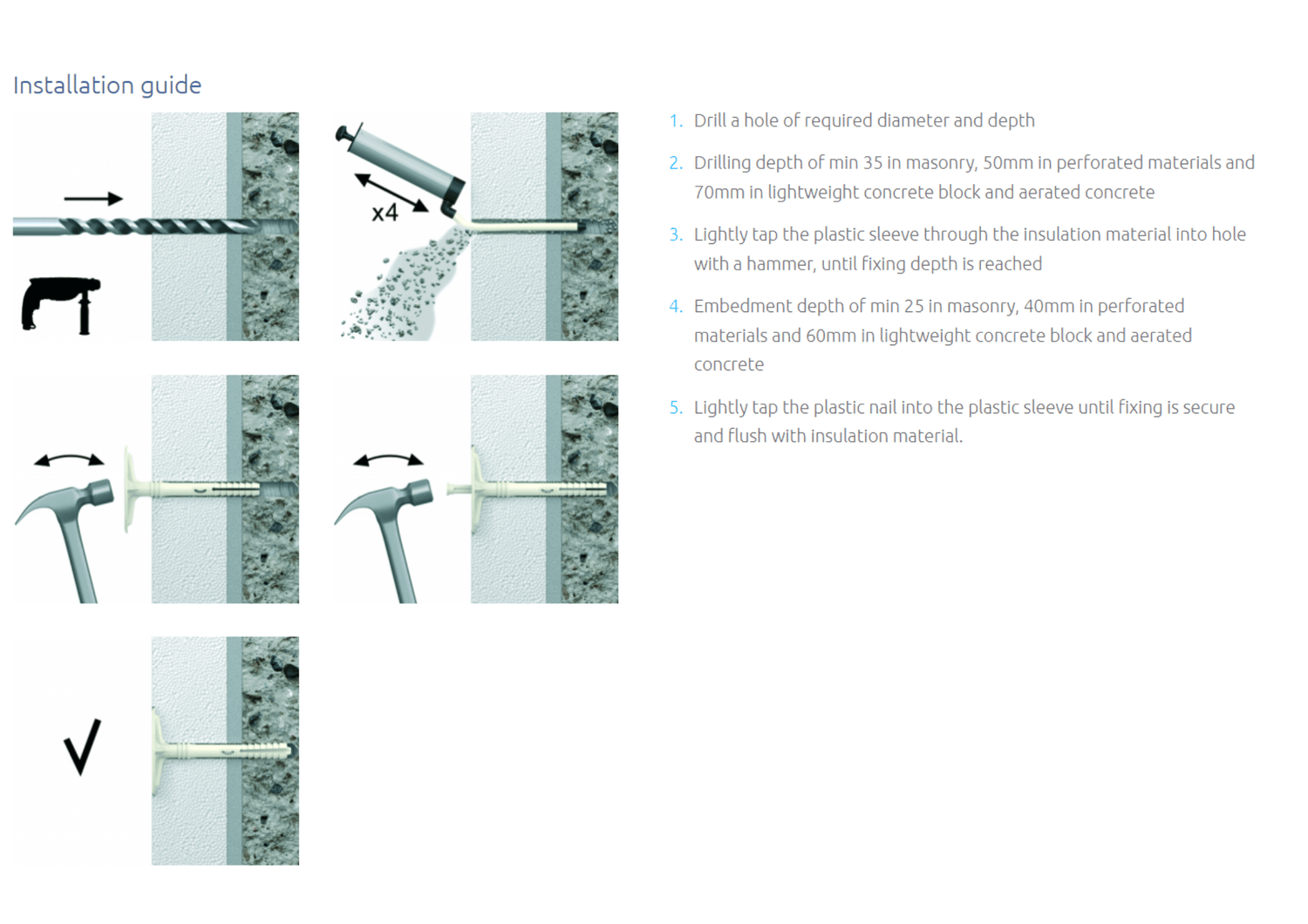

Guide - Click Here

  Specifications

Feature	Values

Brand:	Insulation UK
Length:	70 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-070

Brand:	Insulation UK
Length:	90 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-090

Brand:	Insulation UK
Length:	120 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-120

Brand:	Insulation UK
Length:	140 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-140

Brand:	Insulation UK
Length:	160 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-160

Brand:	Insulation UK
Length:	180 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-180

Brand:	Insulation UK
Length:	200 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-200

Brand:	Insulation UK
Length:	220 mm
Width:	10 mm
Thickness:	60 mm
Manufactures Part Number:	KI-220
Pack SIze:	250
