Fakro Standard Flashing Kit EZV-A Standard Tiles up to 45mm

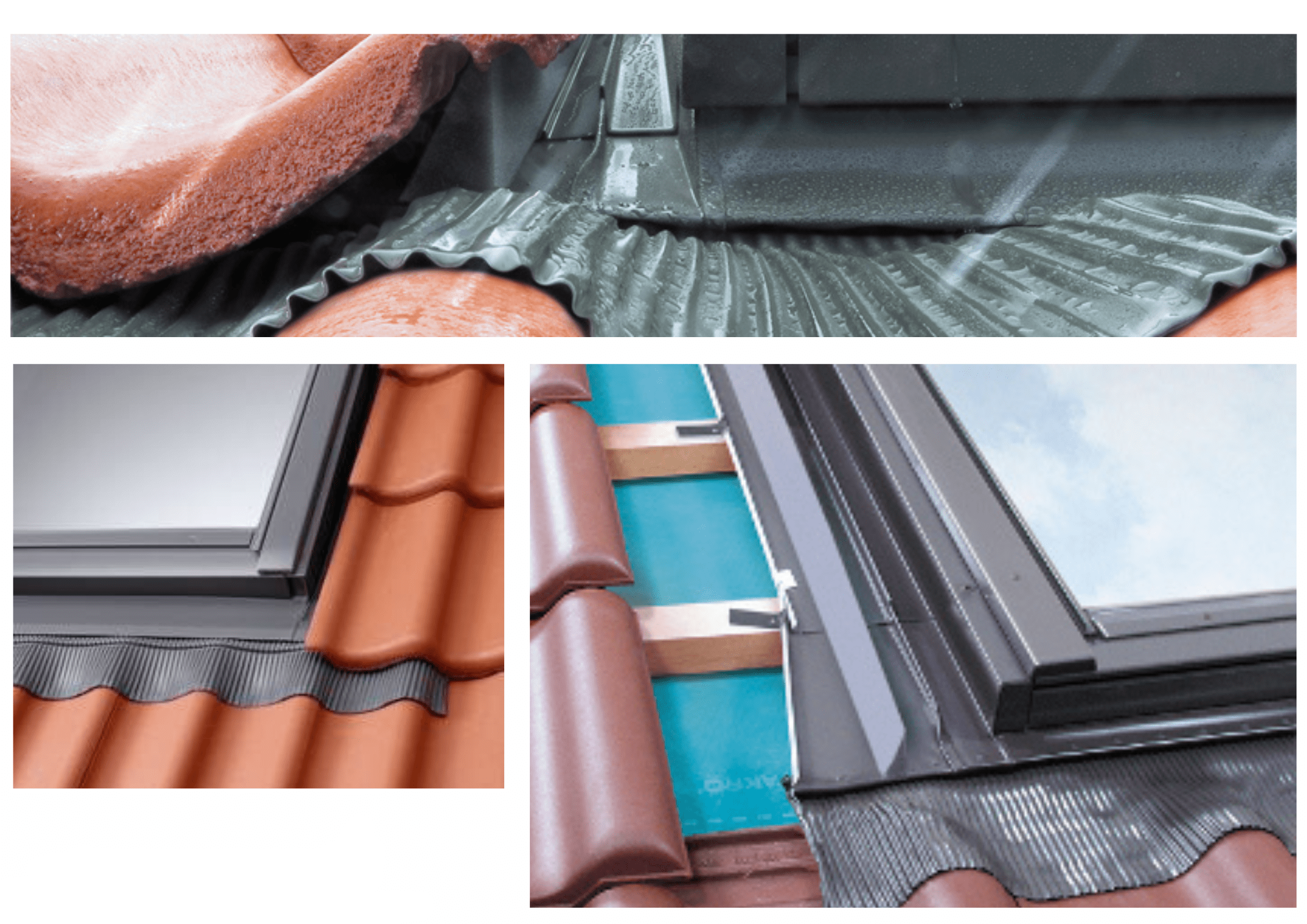

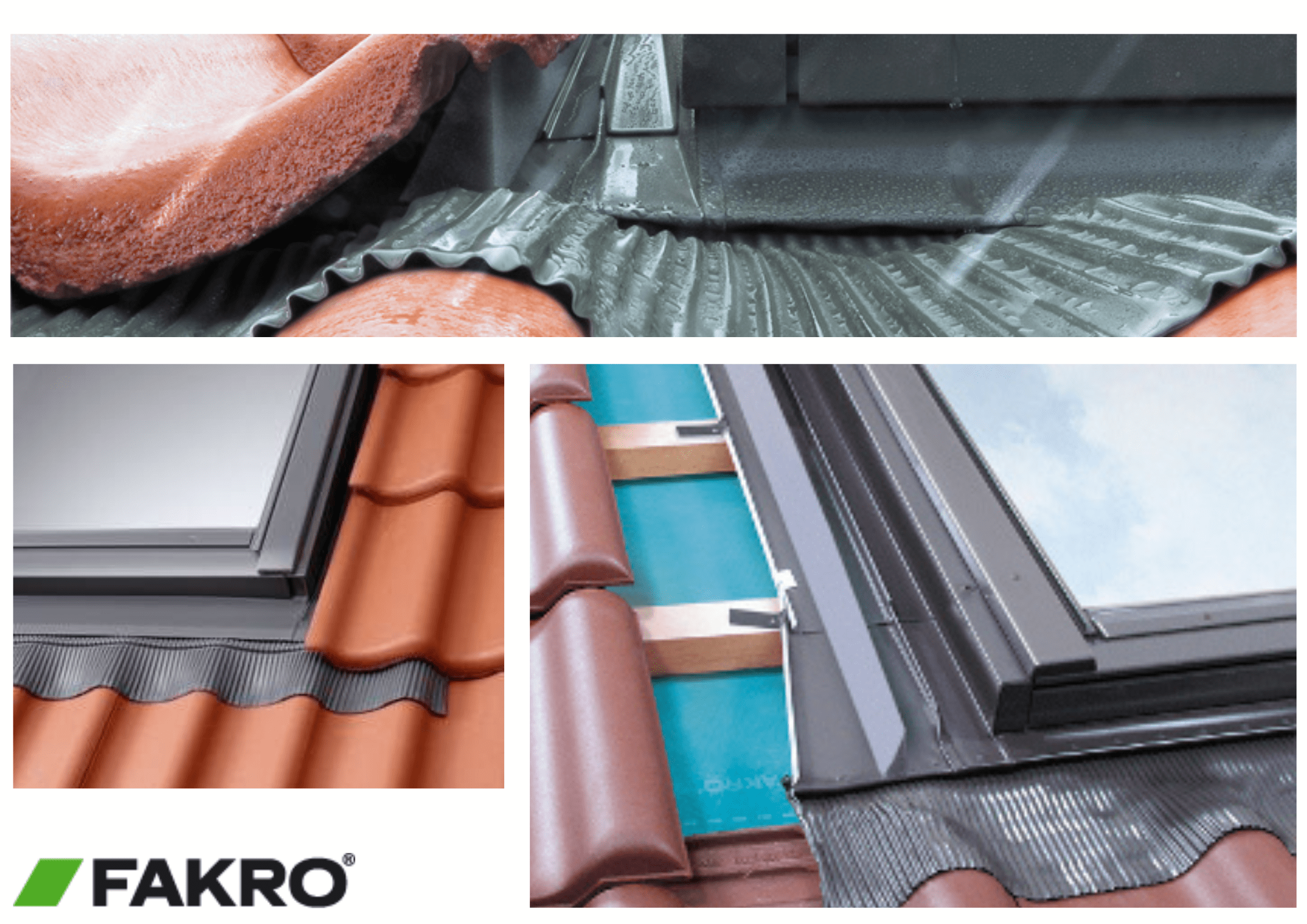

• EZ Flashing is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.

• It is a universal flashing which can be applied not only to corrugated coverings but also to all roof coverings with a profile depth of up to 45mm. As standard EZ flashing is applied to individual windows in the slope of the roof.

• It may also be used as flashing for windows used in combinations or groups:

• For “N” and “V” depths in horizontal, vertical, and block groups,

• For depth “J” in horizontal combination only.

• This flashing is available in three different types allowing windows to be installed at three different depths in the roof construction N(+3), V (0) and J (–3cm).

• The standard installation of windows with the application of flashing EZ is V – version EZV-A.

• Can be used in roofs with pitches:

• from 15° to 90° for depths N and V,

• from 20° to 90° for depth J.

• The flashing EZV-A XDP consists of standard EZV-A (1) flashing and insulation set XDP. XDP consists of air-permeable collar (2) and insulation (3) which is made of specially impregnated sheep wool.

• The flashing is made up of four basic elements (lower element, two sides elements and top element).

• The lower element is finished with an elastic apron which has a plastic mat glued to the underside thus allowing the flashing to adhere to the roof covering for a neat fit.

• The flashing side-sealing channels factory equipped with sponge seals provide protection against wind blown dust, leaves, rain and snow. It also incorporates a gutter which allows condensation to drain away from the window.
