Jablite EPS Insulation

Jablite / Jabfloor is a closed cell expanded polystyrene (EPS) insulation board suitable for use in all floor constructions. It is an excellent insulating medium which exhibits consistent thermal performance over the range of temperatures normally encountered in buildings. The material is versatile, light in weight, clean and easy to handle, and provides a cost-effective means of including permanent insulation in floors, walls and roofs to meet, and exceed, the standards laid down in the Building Regulations.

Can be used in the following

• Below ground supported slab • Above slab below chipboard • Above slab below screed • Precast suspended concrete • Cold Store

Key Benefits

0.038 Thermal Conductivity
Provides cost effective insulation for the lifetime of the building
Excellent compression properties , 100% recyclable
Achieves an A+ rating in the BRE Green Guide to Specification
Available with Class E fire retardant additive
Flood proof, Lightweight and easy to handle
Is non-toxic and biologically inert

The Jablite Jabfloor insulation range is available in Grade EPS70, EPS100, EPS150, EPS200 and EPS250 grades as defined by BS EN13163.

As a quick reference, the following guidance about use and design loads applies:

Jablite Jabfloor EPS70 is used for standard domestic loads

Jablite Jabfloor EPS100 is used in offices and schools.

Jablite Jabfloor EPS150 – 250 is used in heavy commercial, industrial settings

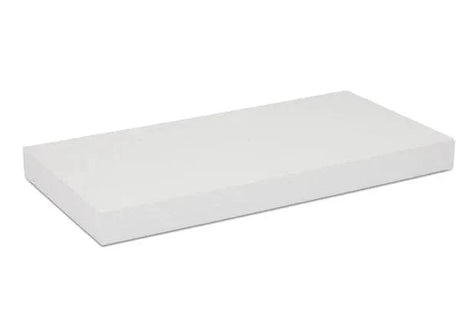

Jablite Jabfloor Insulation is supplied in a standard board size of 2400 x 1200

COMPRESSION PERFORMANCE

Grade (EPS)	70	100	150	200	250
Nominal Density (Kg/m3)	15	20	25	31	34
Compressive Strength 1% (kN/m2)	20	45	70	90	100
Compressive Strength 10% (kN/m2)	70	100	150	200	250
Shear Strength (kN/m2)	55	75	100	200	250
Shear Modulus (kN/m2)	2100	2800	3400	4100	4800
